Rolling Shutter Door slat roll forming Machine
■ Roll Forming Machine For Production Rolling Shutter Door slat
The roll forming machine can manufacture the Galvanised roller shutter door slat. Produced products are in fashionable design and are widely used. Rolling Shutter Slat Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.
■ Machine components - Rolling Shutter Slat roll forming machine
Rolling shutters are custom built for each application with many options for your exact needs.

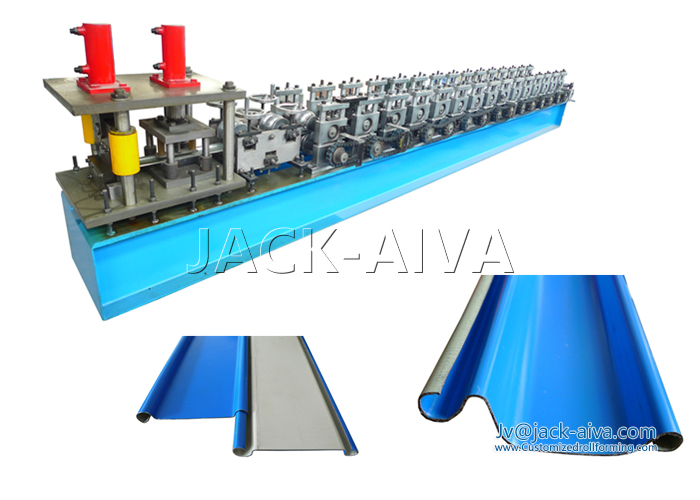

Rolling Shutter Slats Roll Forming Machine for producing galvanised steel rolling shutter door profiles is consisted of de-coiler, main roll-forming machine, straightening part, cut-to-length tracing cutter, run-out table, etc. sometimes, PU foam-filled device and punching holes system are necessary.
■ Roll forming Machine parameters for Roller Shutter Door slat
|
Line structure
|
Portal-type frame style, 45# steel
|
|
Forming Roller Stations:
|
12 Stations
|
|
Forming Roller shaft:
|
Φ36mm
|
|
Forming rollers
|
GCr15, Quenching, hardness HRC56-62º
|
|
Forming Speed:
|
0-12 m/min
|
|
Main motor:
|
4kw
|
|
Material of Sheet:
|
Σs≤260Mpa
|
|
Feeding material thickness:
|
0.8 to 1.2 mm;
|
|
Cutting mode:
|
Automatic control cut-to-length
|
|
Power supplier
|
AC380, 50HZ, 3 PHASE
|

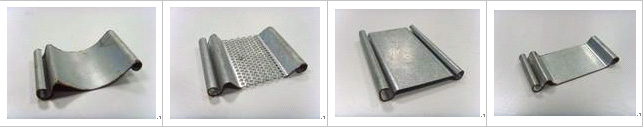

■ Rolling shutter Slat Profiles

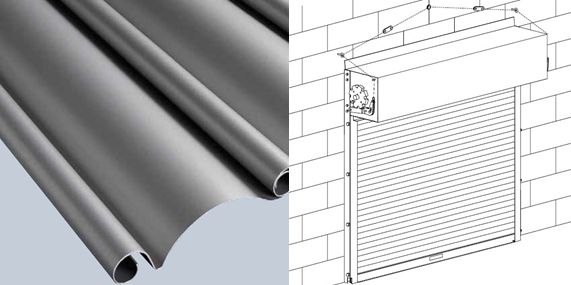

Many roll shutter doors of different specifications can be produced by our machine. And it can also produce doors according to customers’ special needs. The following drawings are some of the Roll-up blinds slat your reference.
■ Roll-up blinds production (non-insulated single layer)
Rolling shutters door now have been extremely popular not only in Europe, but in the whole world. In many European countries, such as Germany, Italy, France and Spain, roll shutters are a standard feature on homes and businesses. The roll shutter business has grown to become a multi-billion dollar industry. Rolling Steel Doors, Fire Doors, rolling shutter, rolling grille, coiling doors, direct manufacturer, Using quality materials, design and workmanship, Alpine complies with the highest security in rolling fire doors, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. Alpines, rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles, are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers. Also designed for warehouses, Dock Doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms. Alpine is a Direct Manufacturer of, Roll up doors, Rolling Fire shutters, Hurricane Roll Up doors, Smoke rated doors, Coiling steel doors, Rollup doors, Rolldown doors, Overhead rolling doors, Rolling steel Insulated doors, Offshore Rolling Doors and Offshore Fire doors, Rolling Sound Doors, Smoke Rated Doors, Fire and Rolling Hurricane doors.
TAG: Rolling shutter machine, Rolling shutter door machine, Roll-up blinds slat
Roller Door, Garage door frames, Roll-up blinds production, Roller door Machine, Rolling shutter door machine, Rolling Shutter Door Slat Roll Forming Machine, Roller Shutter Door
