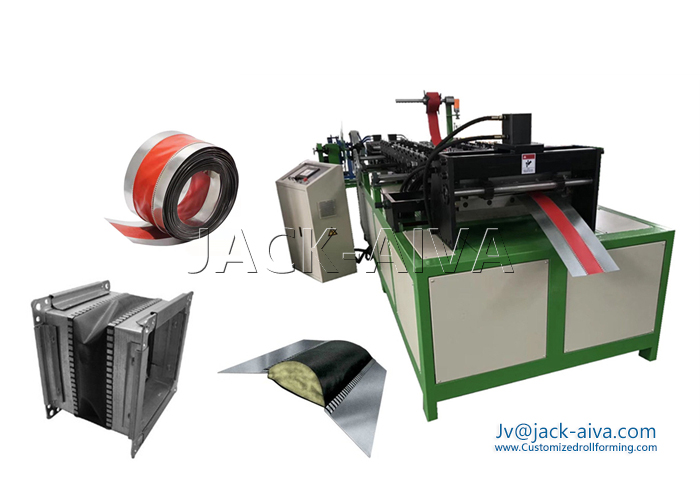

■ Production Line to manufacture duct flexible connectors
The automatic flexible duct connector production Line is consisted of de-coiler, hydraulic punching, roll former and notching, cutter then the belt recoiling. If client has the large quantity production about the flexible duct connectors, this is the proper solution. The final products included punching anger and cutter all can be finished by one line.

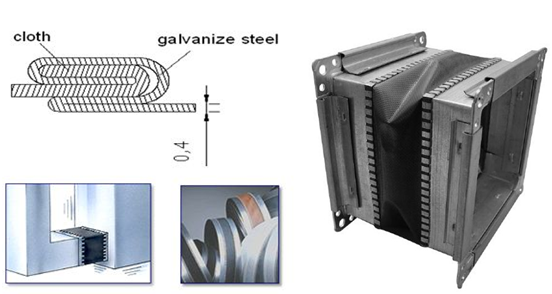

The normal raw material of Flexible duct connector are the GI steel sheet and Fire-Resistant Fabric GC-PV (Polyester Vinyl), GC-SI(Silicone),GC-NE(Neoprene),GC-CV(Canvas). It can be installed between fans or similar equipment.

■ Technology Flow - Duct Flexible Connector Production Line
Duct flexible connector Roll Forming machine mainly consists of conic, guide equipment, leveling system, punching, roll forming system, cutting system, stacking equipment, hydraulic station, electrical control system.

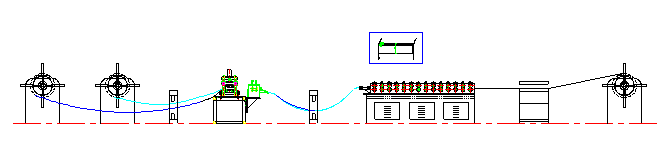

■ Power Un-coiler (2sets)--- hydraulic holes punching -- Main Roll Former --- Notching & Cutter -- Re-coiler

■ Main Parameters- Duct Flexible Connector Production Line

ITEM	CONTENT
Raw material	GI STEEL DC51+Z; 0.4-0.8mm It can be designed according to client request.
Line speed	5-7m/min
Forming roller stations	12 stations x 2 (double line stations on main roll forming machine)
Forming Roller material	GCR15 as raw material ,hardness HRC60-62 after treatment，
Shaft material	Quality steel Ф40mm, 45# steel
Main motor	3kw + 0.75kw
suit for material size	l Flexible fireproof Fabric width range (middle side): 100----300mm; l metal strip width range: 50-150mm; l metal strip thickness range: 0.4-0.8mm
Main machine sizes	350013001300mm
Weight	2500kg

■ Flexible Duct connector Application
The Flexible Duct Connector is designed to enable flexible joints of any size to be easily and economically formed in the
factory or on site. Flexible joints are installed between fans(or similar equipment) to prevent the transmission of vibration,
noise and rattles to the remainder of the air conditioning system.
