Metal Door frame Roll Forming Machine
■ Roll Forming Machine for Door frame and Window frame System

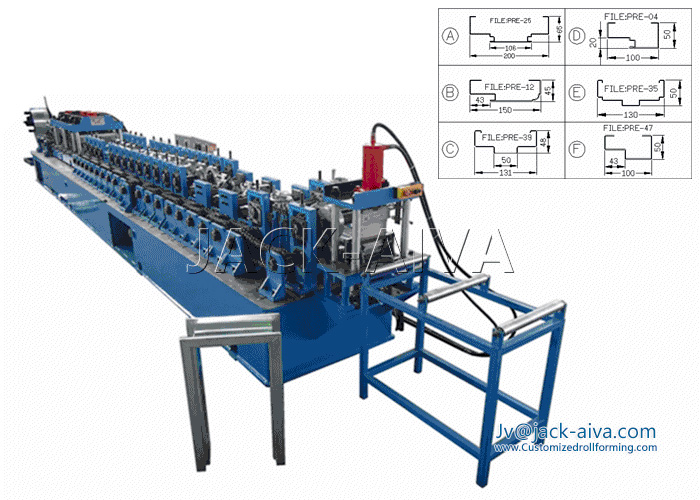

Our Automatic steel doorframe roll forming Machine can form various metal door or window frames, reinforced, fire stop doors, etc. The punching also can be designed according to your needs. The door frame profile by our roll forming machine, the surface can be controlled very smooth and beautiful, without any scratch on surface. This roll forming equipment is consisted of de-coiler, Punching holes device, Main Roll former machine, cutting to length, run-out table, electrical system, etc

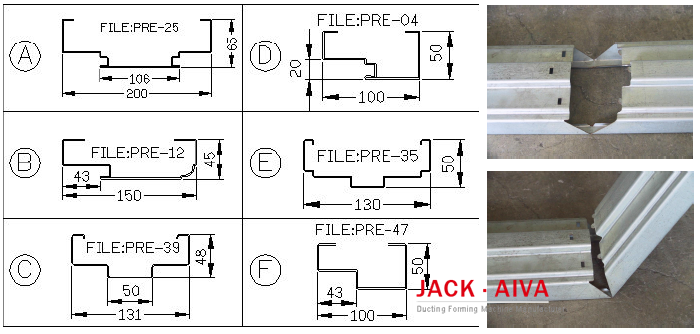

Customized steel doorframe profiles are welcome!
■ Technology Specifications - Steel Door frame Production Line

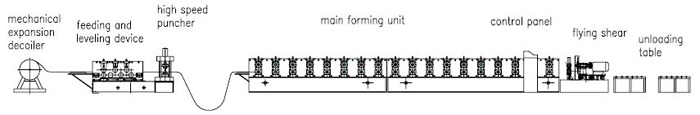

The whole metal doorframe roll-forming line is consisted of de-coiler, Main forming machine, Hydraulic cutting part, run-out table, electrical system. Rollers on the line also named moulds, the material can be processed through rollers continuously, until to get the required profile. Rollers are including the flat roller, middle equipment, side rollers and flatting rollers. Normally the roller material is designed with SKII, the bearing steel after exactitude processed and special treated. All the rollers shape is designed by the professional software, “cool bending aux designing software”. The most advantage is to get the most reasonable rollers shape with its position on the line. so that to get the high precision profiles.
■ Main Parameters - Metal Door frame Roll Forming Machine
|
Punching machine with moulds Capacity
|
40T
|
|
Forming Roller Stations:
|
16 Stations
|
|
Forming Roller shaft:
|
Ø65mm, 40Cr, quenching, treating
|
|
Forming rollers
|
GCr15, quenching, hardness HRC50-58º
|
|
Forming Speed:
|
0-12 meters / min
|
|
Main motor:
|
11kw
|
|
Feed material thickness:
|
1.5mm-2.5mm× L
|
|
Line speed
|
Adjusted by Frequency Inverter
|
|
Power:
|
380V/3ph/50Hz
|
|
Run-out table mode:
|
roller style
|
|
Line dimension:
|
9000×1200×1000mm
|
■ Metal Door Frames
The doorframes based primarily on their low initial cost may result in abnormal maintenance and replacements. Proper door selection is based on Frequency of Use and Resistance to Impact.
The advantages of hollow metal doors are Broad Commercial Applications, Fire Resistant, Insulated and Sound-Rated, Durability. Door Frames are widely applied in related structure industry because of its advantage compared with other material’s.
TAG: Metal Doorframe Machine, Metal door frame Roll forming Machine, Steel Door frame Production Line, Metal Doorframe,
