Steel Door frame Auto Production Line

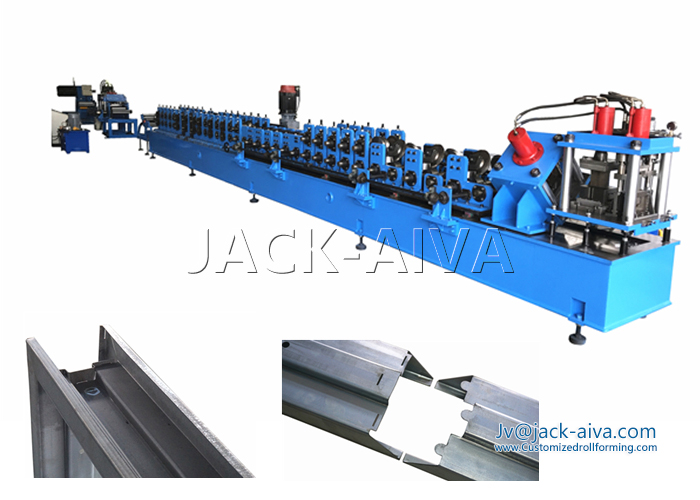

■ Roll Forming machine for manufacturing Metal Doorframes
Our fully automatic Doorframe roll forming machine can roll-form different metal door or window frames, reinforced, fire stop doors, etc. With our our engineer’s so many years experience, the quality Building Construction doorframe profile surface can be obtained after roll-formed, smooth and beautiful without any scratch.


■ Machine components Fully Automatic Steel Door frame Production Line

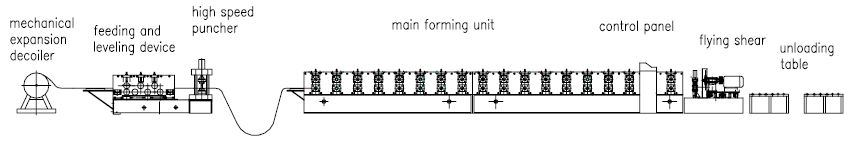

The whole Steel Doorframe Roll Forming machine is consisted of de-coiler, feeding & leveling device, main roll-forming machine, auto tracing cutter, run-out table, etc. The punching system can be including this line according to client production requirements.



■ Metal Door frame Machine main parameters
Punching machine with moulds Capacity
40T
Forming Roller Stations:
16 Stations
Forming Roller shaft:
Ø65mm, 40Cr, quenching, treating
Forming rollers
GCr15, quenching, hardness HRC50-58º
Forming Speed:
0-12 meters / min
Main motor:
11kw
Feed material thickness:
(1.0-2.0) mm× L
Line speed
Adjusted by Frequency Inverter
Power:
380V/3ph/50Hz
Run-out table mode:
roller style
Line dimension:
9000×1200×1000mm

■ Metal roll formed Doorframes


Doorframe profiles are used to fit doors and windows in industrial and domestic constructions.
Primarily the doorframes based on its low initial cost may result in abnormal maintenance and replacements. Proper door selection is based on Frequency of Use and Resistance to Impact. The advantages of hollow metal doors are Broad Commercial Applications, Fire Resistant, Insulated and Sound-Rated, Durability. Door Frames are widely applied in related structure industry because of its advantage compared with other material’s.

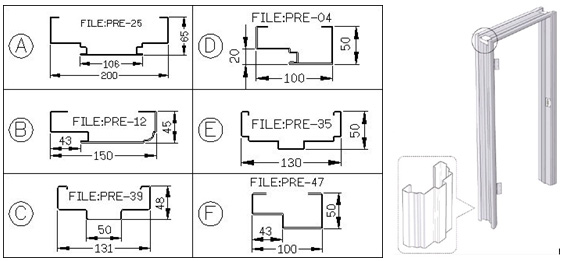

Whether you are looking for a pre-engineered door frame system or any of the Custom frames are available in virtually any made-to-order frame configuration and dimension. We can supply any other customization doorframes machine that you may need. Just let us know you required details. The following are some typical doorframe profiles popular in the world market as client’s reference.

■ High quality door windows frames

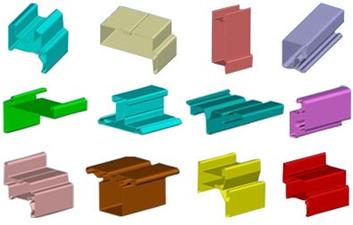

One roll forming machine only can produce one profile. The following of our partly new developed high quality door windows frames profiles are some examples for your reference. TAG: Doorframe machine, Steel Doorframe Roll Forming Machine, Building Construction profiles, fully automatic doorframe roll forming machine,



TAG: Doorframe machine, Steel Doorframe Roll Forming Machine, Building Construction profiles, fully automatic doorframe roll forming machine,
