Ball bearing Sliders Roll Forming Machine-45mm
■ Roll forming machine for the manufacture 45mm Ball bearing Sliders
The Cabinet Drawer Slides, 3 folder ball bearing slides are consisted of two outer runners and one inner guide. They can be fabricated from almost any material and in almost any length. the 45mm cabinet drawer slides are currently used in tool boxes, truck boxes, shop desks, work benches, vending machines, broiler drawers, medical carts and AV equipment racks.
3 piece Metal Drawer Slide (Friction Slide)

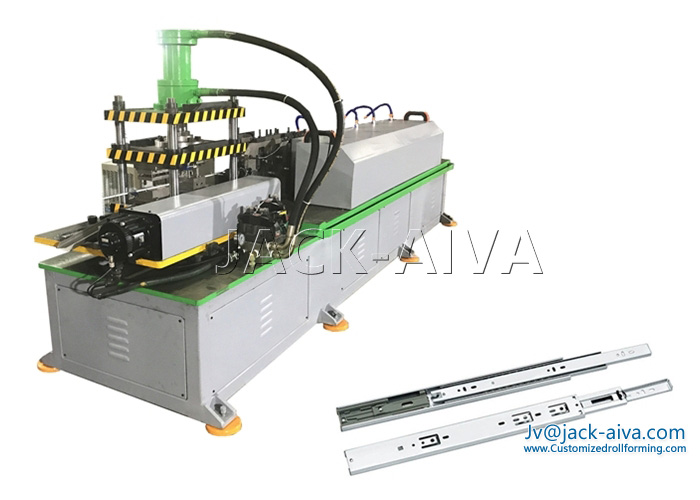

■ Brief Introduction- 45mm Ball bearing Sliders Roll Forming Machine
Our manufacturer is the earliest on in china to design and supply this cabinet drawer slides roll forming machine. even more earlier than Taiwan manufacturer in this industry. With around 30 years manufacturing experience, advanced design concepts and processes. Using CNC numerical control equipment, processing, and improve the accuracy of wheel size. The design is reasonable, accurate, and the processing of high precision, good stability, the equipment, The products produced stable and high accuracy.
We are not only far ahead in technology research and development strength, talent, design, processing equipment, process, product accuracy and stability of advanced equipment in such areas as far away ahead in the industry! CNC numerical control equipment used for precision machining of the roll forming rollers, using the second element image measuring instrument for forming rollers detection, ensure that the design, processing, installation of data unity, ensure that the equipment within the accuracy of 0.03mm.
■ Technology Specifications- 45mm Ball bearing Sliders Roll Forming Machine

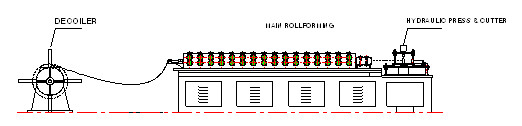

The whole High-precision steel ball slide rail equipment (Metal Drawer Slides Roll Forming Machine) is consist of De-coiler, main forming machine, straightening part, Punching & Cutting, electrical control system, etc.
■ Main Parameters- 45mm Ball bearing Sliders Roll Forming Machine
|
ITEM
|
CONTENT
|
|
Raw material
|
Cold rolled Steel strip, 0.5-0.6mm
|
|
Thickness:
(Inner track* middle track * Out track)
|
1.0xl.0xl.2mm / 1.1x1.1x1.4mm / 1.2x1.2x1.5mm
|
|
Roll formed profile:
(Out track / middle track / inner track)
|
45mm 3 folding ball bearing slides
|
|
Forming Roller Stations:
|
12 Stations / 12 stations / 12 stations
|
|
Forming Roller shaft:
|
Diameter 52mm, 45# after polishing
|
|
Forming rollers
|
Cr12MoV, after treatment, its hardness is HRC60-62.
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
7.5kw
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Cutting mode:
|
Hydraulic tracing cutter, driving by servo motor
|
|
Production Efficiency:
|
200 000 PCS per Month
|
|
Control Cabinet
|
3xAC380v, 50HZ
|

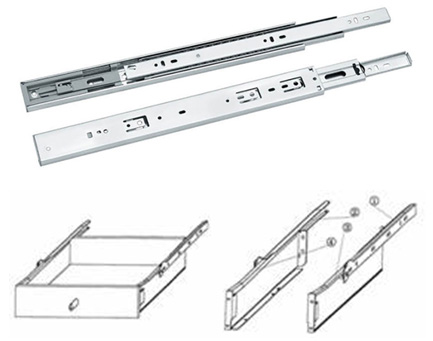

■ 45mm Ball Bearing slides Profile
Cabinet drawer slides 45mm are widely adopt for bedroom furniture, sliding cabinet doors, office cabinets and bathroom cabinets etc.
There have various length about this three folding 45mm drawer slides, such as the telescopic Drawer Slides, full extension drawer Slide, Soft Close Drawer Runners, etc. we all can supply the related roll forming machines for these profiles.
Welcome to contact with us for the further details!
TAG: Cabinet Drawer Slides Machine, 45mm Ball bearing Sliders Roll Forming Machine
