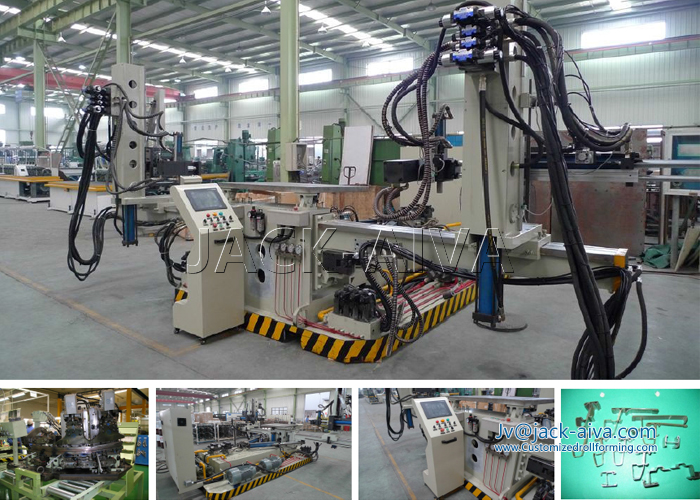

■ 3D-Axis Stretch bending machine for production automotive door & windows frames
3D Axis stretch bender is mainly used for automobile door frames, window frames, roof ditch, and other parts that should be bent. This is the automatic machine with the process theory, machine configuration and molds CAD, electrical and hydraulic transmission. With the Japanese mature stretch bending technology, we developed with widely applicability of the mechanical linkage, and multi-axis three-axis dynamic three-dimensional stretch bending sequence of basic institutions and a variety of tooling deformation bodies; developed curved shape a common host, and developed a series of parameters. Device can store multiple sets of stretch-bending process to adapt to different production profiles.
Mainly 3D Stretch bending machine for each process is consisted of both sides clamping action, leveling stretch, both sides rotation and lifting, etc.
These are designed according to different procedures for different mold technology of action.
Our manufacturer is the one of the few that has the ability to design the custom 3D stretch bending machine in china.

■ 3D-Axis Stretch Bending machine technology flow
Manual release products → clamping product → Push start button → start (move up the formation of power) → bending operation /( Rotary Run / shaft up moving) → actions stop at the position→ pulled up loose claws → loose crimping tool → all the auxiliary fuel cylinder action (Such as: sawing, drilling, shaping, etc.)→bending return back /( Z shaft back / rotation back / pulled up to return) →All actions back to original positions.→ take off product by manual → complete one production cycle

■ Main parameters -3D-Axis Stretch Bending machine
Table height: 1100mm
Rotation angle range for two moving arms: 0 ~ 90 °
Distance between both side clamping tools: 800 ~ 3500mm
Height between clamping tools with table: 100mm ~ 735mm
Stretching cylinder around the ear axis angle range: -28 ° ~ 15 °
Clamping tools shaft of rotation around the tensile cylinder: -18 ° ~ 63 °
Work table size: 1200mm (length) X700mm (Width)
Fuel tank capacity: 2.5 barrels of hydraulic oil 46 #
Weight: 7000kg
Equipment working life: 10 years (8 working hours per day or 2,160,000pcs)

■ Automotive Stretch bending Profile samples as reference

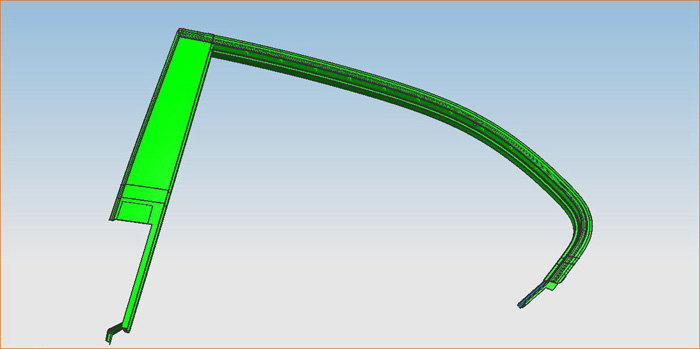

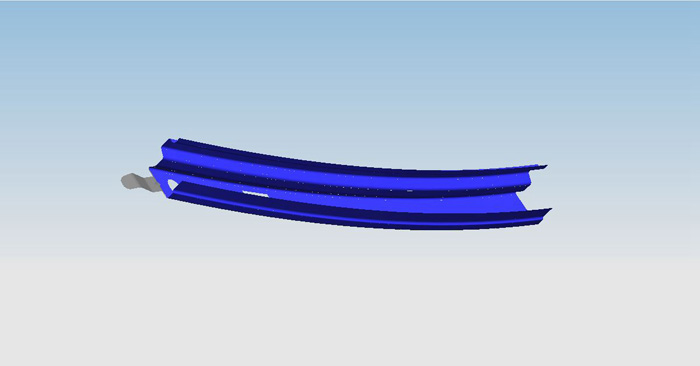

The following profile drawings are some automobile profiles as your reference.
