Automotive Door & Windows frame Machine
■ Roll forming machine for production automotive door & windows frame Brief Introduction
The field of automotive cold-formed molding equipment are mainly including as following, auto window and door profile equipment, windows guides, door trim, A-pillars, B-pillars, other automotive parts, rail car doors and windows, car beam shaping devices, and related auxiliary equipment auxiliary group and the three-dimensional pulled equipment, special cutting equipment.
■ Automobile door window frame roll forming machine Components Technology Specification

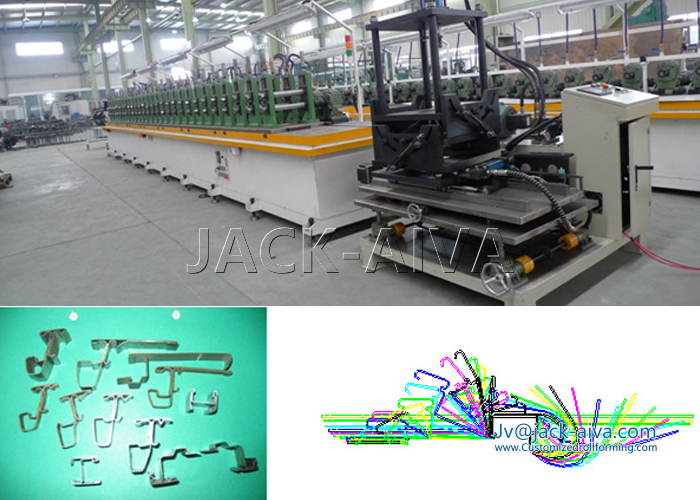

This is the custom roll forming line for manufacturing automotive door & windows frame, considering the various automotive door and windows frames, it adopts cassette style roll forming unit technology, the whole line is consisted of de-coiler, roll forming machine, straightening device (including the straightening and bending parts), Stretch Bending machine, cutting device, electrical system.
■ Automobile door window frame roll forming machine main parameters
1. Voltage: 3xAC380V; motor power (with high-speed fan) 15KW * 2; Converter 15KW * 2; Motor rpm 1400r/min.
2. Center height of around 1200mm, can be mounted on 36 set forming rollers; MAX speed 20r/min; Line speed: 0-16 m / min.
3. Line Dimension: 13500 * 1000 * 1500 (According to design date), and with Lubrication cooling system.
4. Axis effective width: 300mm; shaft diameter φ40mm; Maximum torque 139.6kg-m; adjacent shaft distance: 300mm; output torque 69.8kg-m.
5. Up and down roller axis parallel degree 0.08mm (any direction). Wheel installed base straightness 0.04mm, wheel axle hop is 0.04mm, wheel frame Table Flatness 0.10mm, roller shelves adjustable 95-170mm wheel under the frame Fast change mode device.
6. Forming Range: feeding material width 0-280mm, thickness 0-2mm.
7. Forming cross-section size precision ± 0.2mm.
Herein the related door frames and windows frames, the custom made can be according to clients’ request.
■ Automotive door & windows Frame Profiles samples as reference

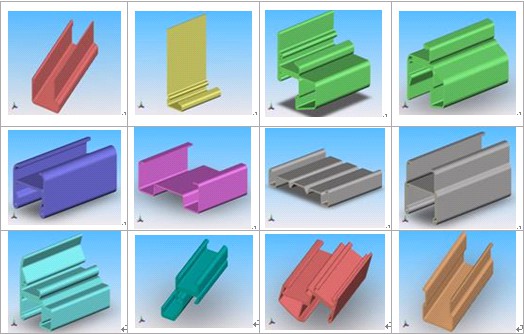

The following profile drawings are some automobile profiles as your reference. These are including the profiles about Window guides, door trim, A-Pillars, B-pillars and other automotive parts
In addition to the major automobile manufacturing equipment profile Cold forming equipment, with a certain amount of auxiliary equipment needed to properly produce the corresponding profiles. There is also a straight line and circular servo hydraulic cutting machine, hydraulic straight cutting sawing machines and other auxiliary equipment can be customized according to customer requirements.
This is the technology to bend metal parts with complex cross-section profiles, often used for body parts of automobile, to three-dimensional directions.
We develop bending machines and molds all in-house to realize bending tailored to each customer’s needs.
TAG: Automotive Roll Forming, Automobile Roll Forming machine,Windows guides, door trim, A-pillars, B-pillars, other automotive parts,Automotive Door & Windows Frame Roll Forming line,Roll forming lines for manufacturer the production of automotive components
We are one of the most professional suppliers in this automotive components roll forming machinery industry in china.
We had ever designed and supplied related automotive roll forming machines for the Toyota Corp., Honda Co., Chery and other relative spare parts suppliers and other related Chinese agriculture automobile companies, etc.
Custom roll formed profiles in this automobile industry are welcome!
