Structural Steel Framing Cassette Style Roll Forming Machine
■ Light Steel Framing Roof Purlin Cassette style Roll Forming Machine for production Omega Profile, Top Hat Batten, C channel Section
Omega Profile, Top Hat Batten, C channel Section as the integral part of light steel structure are roll-formed from Hi-Tensile GI steel. With its advantage, these purlins are very popular in the present world market, widely adopted in Building construction Industry – commercial and residential, they are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures.
■ Technology Specifications - Steel Structural cassette style Roll Forming Machine
With more than 20 years experience in this roll forming machinery industry. we have full ability to design the customized roll formers according to client request. After so many years developed, the present purlins cassettes style roll forming line technology is perfect, including the cost and quality. Various sizes of Omega Profile, C purlin and top hat battens can be produced by the same line after adjusted by hand wheel or changed the roll forming cassettes. The operation is very simple and quick. The change time and labor fee can be reduced. If the machine investment is enough, This is the proper solution. The servo tracing cutter or stationary cutter can be optional.

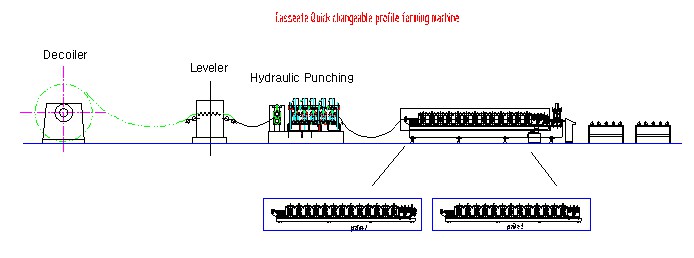

The whole roll form line is consisted of de-coiler, flatting device, holes punching equipments, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.
De-coiling---Coil sheet guiding and feeding---sheets Pre cutting------cut-to-length----Roll forming---- Hydraulic punching holes---cut to length—stacking production
■ Main Parameters- Steel Structural cassette style Roll Forming Machine
|
Feeding material Thickness:
|
0.3~2.0mm (Q195, Q235)
|
|
Material of roller:
|
Quality moulds steel, polished and coated with chrome, hardness HRC58-62
|
|
Forming Roller Stations:
|
15 Stations, quality casting steel after precision processed.
|
|
Main power:
|
15KW
|
|
Hydraulic station power:
|
5.5KW
|
|
Hydraulic pressure:
|
10-12Mpa
|
|
Leveller
|
4KW
|
|
Control system:
|
PLC Control with touch Screen, Inverter, Encoder are MITSUBISH or Panasonic Brand Japan
|
|
Profile
|
Omega section, C PURLIN, Top hat batten
|
|
Product length tolerance
|
2M+/- 1.0mm
|
|
Line speed:
|
10-15m/min (not including cutting material time)
|
|
Size of main machine:
|
11000×1800×1800mm
|
|
Equipment weight:
|
12500kg
|
■ Light Steel Framing Roof Purlin Cassette style Roll Forming Machine
The Omega Profile, Top Hat Batten and C channel Section can be produced by this cassette style roll forming line.
- The manual decoiler or hydraulic decoiler can be optional.
- The normal driving system is controlled by chains. Gearing box can be designed according to client request.
- The profile can be customized prepared according to client request.
■ Application - Light Steel Framing Roof Purlin System
The raw material for the top hat channel is galvanized steel with zinc coating, the thickness is 0.3~2.0mm
Mostly These light steel frames roof purlins are used for ceiling or roof system. The advantage: is rust-proof, fire-proof and easy to install. It is suitable for all size of the hotel, airport, office buildings, shopping malls and other public, home decoration places.
TAG: Steel Structural Profile machine, Light Steel Framing Roof Purlin Cassette style Roll Forming Machine
The Omega Profile, Top Hat Batten and C channel Section
Last：C-Z Purlin Roll Forming Line
Next：Light Steel Slotted C Channel Making Machine
