C-Z purlin changeable Auto Production Line

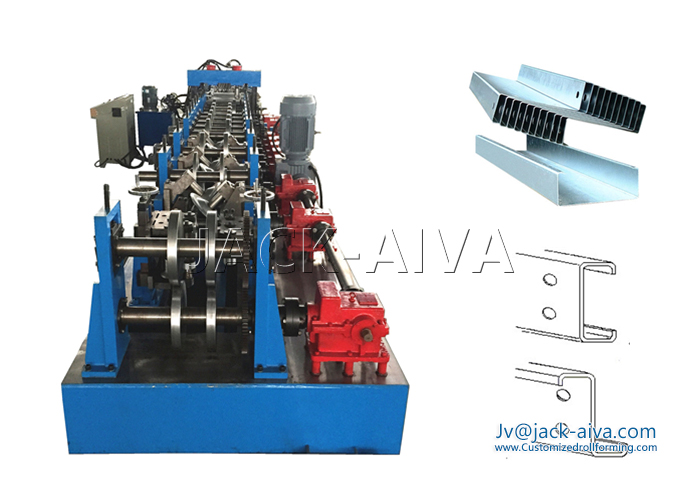

■ CZ purlin changeable auto production line - Cutter before roll forming
C-Z Purlin is an integral part of light steel structure. by roll forming technology. CZ purlins are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures. The purlins are widely adopted in Building construction Industry – commercial and residential,
■ Roll Forming Machine Technology Specifications - C-Z purline auto changeable
The CZ Purlin production can be by the same line and without any parts replacement when change the different purline production.This is also the most developed one in the world market.
The CZ profile width and high can be adjusted by hand wheel easily, also the servo motor driven can be optional.
The whole roll form line is consisted of de-coiler, main machine and pre-cutter, hydraulic punching and run out table, etc.
■ The technology flow as following,

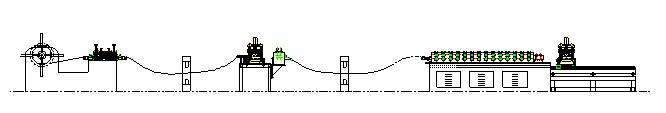

De-coiling ----Hydraulic punching + hydraulic cutter + Roll forming ---- Run out table
■ Main Parameters- C Z purlin Roll Forming Machine
|
Feeding material Thickness:
|
1.4-3mm (Q195, Q235)
|
|
Forming station:
|
20 sets
|
|
Material of roller:
|
Quality moulds steel, polished and coated with chrome, hardness HRC58-62
|
|
Forming Roller Stations:
|
20 Stations, quality casting steel after precision processed.
|
|
Main power:
|
15KW
|
|
Hydraulic station power:
|
5.5KW
|
|
Hydraulic pressure:
|
10-12Mpa
|
|
Leveller
|
4KW
|
|
Control system:
|
PLC Control with touch Screen, Inverter, Encoder are MITSUBISH or Panasonic Brand Japan
|
|
C PURLIN:
|
Width:100-300mm;
|
|
High: 40-85mm
|
|
Z Purlin:
|
Width: 100-300mm
|
|
HIGH:40-85mm
|
|
Product length tolerance
|
2M+/- 1.0mm
|
|
Line speed:
|
10-15m/min (not including cutting material time)
|
|
Size of main machine:
|
11000×1800×1800mm
|
|
Equipment weight:
|
14000kg
|
■ Application - C Purline & Z Purlin

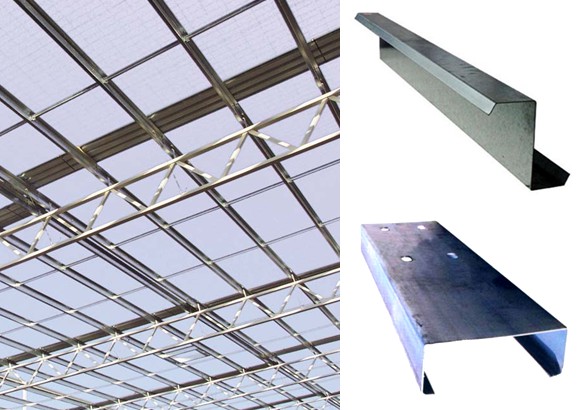

With the advantage of Cee & Zee purlin, they are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden in steel structure industry and so on.
C PURLIN SECTIONS: C sections have flanges which are equal in size and are commonly used for simple supported spans. C sections cannot be lapped continuous spans in multi-bay buildings, but easily adapted for use in small and medium sized buildings as structural framework.
Z PURLIN SECTIONS: Z sections are made with one flange broader than the other. When one purlin is rotated 1800 two sections can be bolted together enabling them to be lapped. Lapping the purlins over interior supports improves the load capacity and rigidity of the purlins. Z sections may also be used for simple spans. Purlins and Girts that are lapped form a structurally continuous line along the length of the building
■ CZ Profile drawing

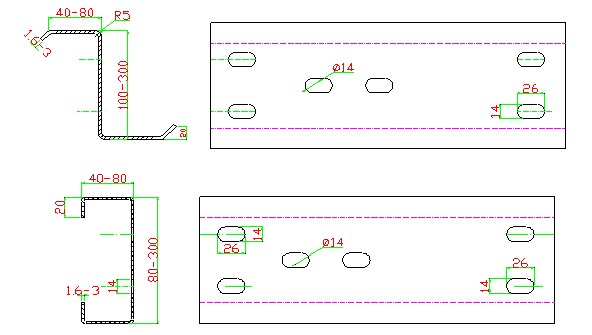

Standard C Z purlin profile drawing as following,
We can send the best solution and design different style C & Z Purlin roll forming machine according to client’s requirements, such as holes punched after profile roll formed, or pre- punched, etc. We can do a custom roll forming machine, i.e. we can design the machine according to your specification and profile drawing. Complex questions will be simple here.
