Omega Profile Roll Forming Machine

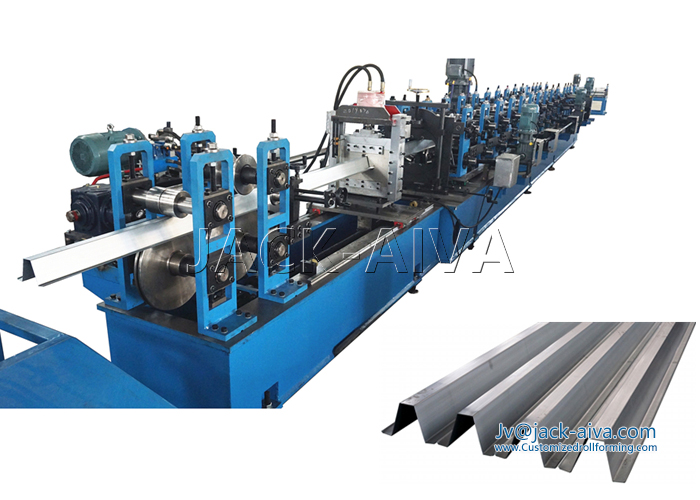

■ Steel Structural Frame Roll Forming Machine for omega profile
Omega is as an integral part of light steel structure is roll-formed from Hi-Tensile GI steel. With its advantage, it is very popular in the present world market, The Omega beam is widely adopted in Building construction Industry – commercial and residential, they are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures.
■ Technology Specifications - Steel Structural Omega Profile Roll Forming Machine
With more than 20 years experience in this roll forming industry. we have full ability to design the customized roll formers according to client request. After so many years developed, the present Omega profile roll forming line technology is perfect, including the cost and quality. Various sizes of Omega Profile can be produced by the same line after adjusted by hand wheel or controlled by servo motor. The operation is very simple and quick. The change time and labor fee can be reduced. If the machine investment is enough, This is the proper solution. The servo tracing cutter or stationary cutter can be optional.
The whole roll form line is consisted of de-coiler, flatting device, holes punching equipments, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.

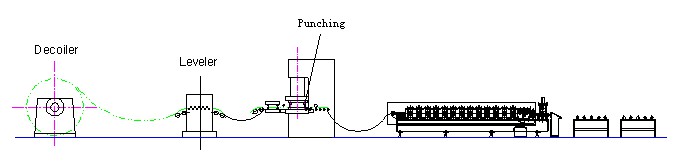

De-coiling---Coil sheet guiding and feeding---sheets Pre cutting------cut-to-length----Roll forming---- Hydraulic punching holes---cut to length—stacking production
■ Main Parameters- Steel Structural Omega Profile Roll Forming Machine
|
Feeding material Thickness:
|
1.5-2.5mm (Q195, Q235)
|
|
Material of roller:
|
Quality moulds steel, polished and coated with chrome, hardness HRC58-62
|
|
Forming Roller Stations:
|
15 Stations, quality casting steel after precision processed.
|
|
Main power:
|
15KW
|
|
Hydraulic station power:
|
5.5KW
|
|
Hydraulic pressure:
|
10-12Mpa
|
|
Leveller
|
4KW
|
|
Control system:
|
PLC Control with touch Screen, Inverter, Encoder are MITSUBISH or Panasonic Brand Japan
|
|
Omega Profile
|
H40-150mm; W 30-90mm
|
|
Product length tolerance
|
2M+/- 1.0mm
|
|
Line speed:
|
10-15m/min (not including cutting material time)
|
|
Size of main machine:
|
11000×1800×1800mm
|
|
Equipment weight:
|
7500kg
|
■ Steel Structural Omega Profile Section
- The manual decoiler or hydraulic decoiler can be optional.
- The normal driving system is controlled by chains. Gearing box with cardan shaft also can designed according to your request.

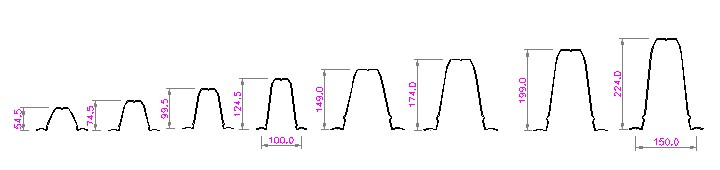

- Standard Omega purlin profile drawing as following,
- We can send the best solution and design different style omega Profile roll forming machine according to client’s requirements, such as holes punched after profile roll formed, or pre- punched, etc. We can do a custom roll forming machine, i.e. we can design the machine according to your specification and profile drawing. Complex questions will be simple here.

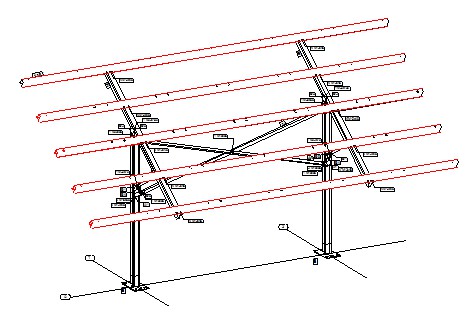

■ Application - Omega Profile Section
Omega sections have flanges which are equal in size and are commonly used for simple supported spans. omega sections cannot be lapped continuous spans in multi-bay buildings, but easily adapted for use in small and medium sized buildings as structural framework.
Last：Sigma Purline Roll Forming Machine
Next：Roof Batten Roll Forming Machine
