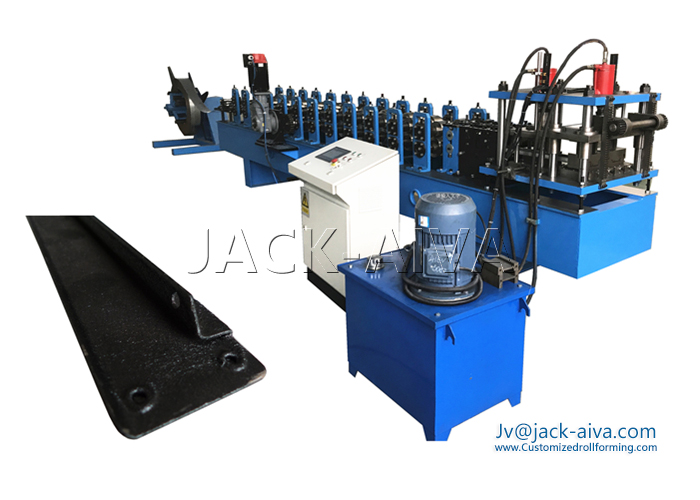

Double rivet shelf C beam Making Machine
 Roll Forming Machine for the Manufacture of Shelf Storage Double rivet shelf beam
The Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.  With the production advantage of the shelving & storage racks roll forming equipments, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.
The V beam is a typical part of rivet rack, this kind of shelf storage system is a commonly used storage rack, which is named after the rivets are hooked between the beam and the column.
This kind of shelf assembly does not require screws, and has the characteristics of convenient disassembly and assembly and variable assembly. The shelf has a load capacity of 180kg per floor and is a light shelf. According to the different rivets on the beam, it can be divided into single rivet shelves and double rivet shelves.

 Technology Processing Flow- Double rivet shelf beam Roll Forming Machine

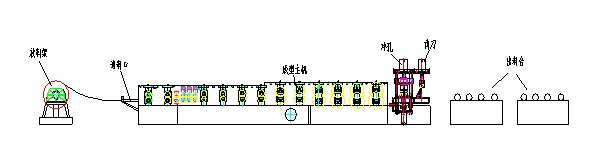

The Double rivet shelf beam roll forming line is consisted of de-coiler, Main roll forming machine, punching and Cut to length, cutting equipment, hydraulic system, control system, etc
De-coiling --- Roll forming—punching---cut to lengthstacking production




 Main Parameters- Double rivet shelf beam Roll Forming Machine
- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; 1.5mm× L
- Online Holes Punching with moulds 1 set,
- Forming Roller Stations: 12 Stations
- Main shaft: 45﹟forge steel   diameter roller: Ф48mm
- working speed: 12m/min (include punching and cutting, length in ≥6m)
- Total power: 3.5kw
- Cutting mode: Automatic control, cut to length
- Hydraulic station power 4kw
- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

 Shelf Storage Double rivet shelf beam
The double rivet beam rivet shelf is a shelf that can store large-capacity items. A double rivet beam shelf can hold 2~3 layers of shelves, which can be arbitrarily disassembled and installed without any tools, which is convenient for users. A T-shaped column can be shared when the two shelves are placed together. Heavier P-bars and heavy-duty single rivet beams allow for heavier items.
The following is the typical double Rivet beam for reference. custom Shelf Storage Beam profiles are welcome!




TAG: Double rivet shelf beam Roll Forming Machine, Shelf Storage C Beam,
Shelf Storage double Rivet Beam Roll Forming Machine, The roll forming line production Shelf Storage Racks is also named as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine.
