Duplex Cladding Sheet Forming Machine

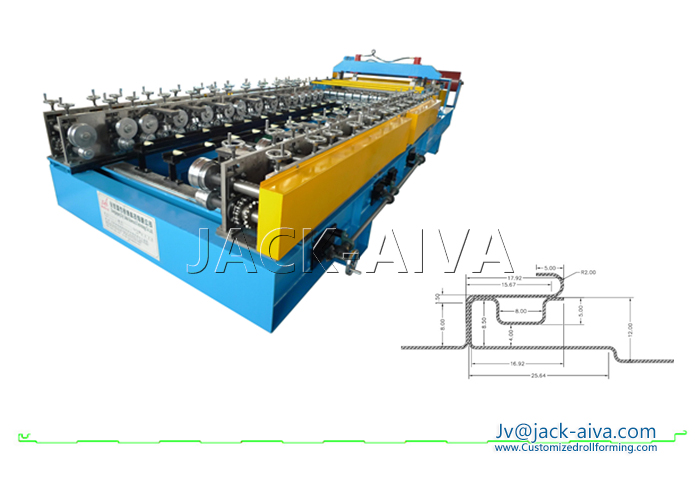

■ Duplex Roll Forming Machine for production steel Cladding sheet- with adjustable width
The duplex roll forming machine can produce various width steel cladding sheets or wall panels, and without changing any rollers or cutting die, just moved the side forming station by hand wheel, this will be the operation.
This roll former design is suitable for the profile that its width not fixed. Especially for the inner panel of insulation board. The adjustment by servo motor is optional. The cutter is before roll forming, so that it is no need to change the cutting moulds any more.
Our manufacturer is one of the leading supplier and manufacturer in china and have been supplying and making roll forming equipment for the metal building construction industry for a long time We have full ability to supply almost all the panel making machines.
■ Technology specification - Cladding sheet Duplex Roll Forming Machine

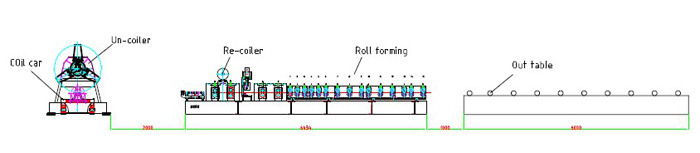

The duplex wall panel roll forming machines are manufactured with advanced technology. The whole line consists of un-coiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, and run out table.
■ Main Parameters - Duplex Roll Forming Machine for production wall panel or cladding sheets
|
Item
|
Content
|
|
Raw material
|
0.4-0.7mm, Yield strength of material: 235Mpa-345Mpa
|
|
Roll station:
|
18 stations, 2 sets beading station.
|
|
Roller material
|
GCr15 surface under heat treatment and hard-chromed
|
|
Main power:
|
7.5kw
|
|
Forming Speed:
|
0-12 m/min
|
|
Driving system:
|
By chain
|
|
Control System :
|
Fully Automatic Control System with PLC, Easy operation: Key in the length and quantity on the control panel
|
|
Capacity Length:
|
up to 9999 mm (optional)
|
|
Total Gross Weight:
|
About 6000kgs
|
|
Line size (Lx w x h)
|
9000 mm×1500 mm×1100 mm
|

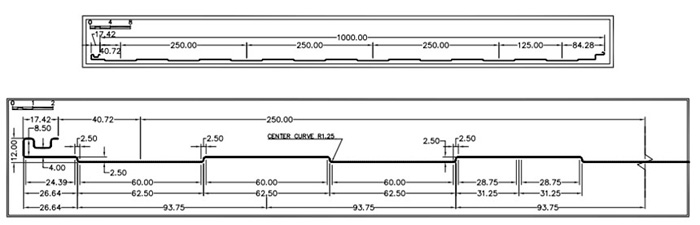

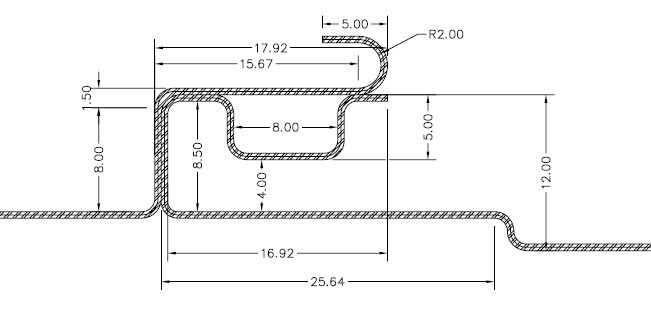

■ Wall panel profiles
One roll forming machine can produce one cladding sheet profile with different width. We can manufacture as per customer provided drawings with specification or real objects of sectional materials, custom roll forming machine is welcome.
More information about roof panel profiles, Pls contact with us!
TAGS: Duplex Roll Forming Machine, Duplex wall Panel Machine, Duplex cladding sheet roll forming Machine
