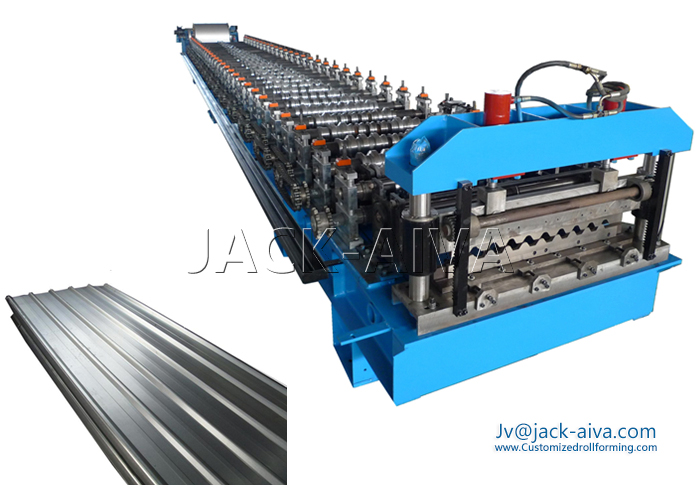

Trapezoidal Panel Roll Forming Machine
■ Roll Forming Machine for production Trapezoidal Roofing panel and siding Panel
Our manufacturer is Specialist in roll forming design for production building construction profiles, cover the range for manufacture metal roof panel and wall panel, various trapezoidal panel profiles can be custom manufactured. The complete roll forming lines for production steel panels of roofing & cladding will be supplied by JACK-AIVA. Various Steel roof and wall panels all can be manufactured by our roll forming machines. We can customized deigned the single layer, or double layer forming machines, also the cassette type trapezoid roof panel production lines, the solution can be according to clients’ request.
■ Trapezoidal panel roll forming machine Components
This Steel structure Trapezoidal panel roll forming Machine including Roll-forming tools and other equipment, such as for example: unwinding of many types, feeding, straightening, holes punching and perforation or cutting and final packing. All of this equipment is manufactured to order according to the requirements and concepts of the customer. The normal technology for our steel wall & roof panel roll forming machines is as following,
■ De-coiling - Coil sheet guiding & feeding - Roll forming - cut to length - stacking production
The present cladding panel roll forming machine only can produce one profile.
■ Technology Specification - Trapezoidal Panel Roll Forming Machine
|
Item
|
Content
|
|
Raw material thickness
|
0.3-0.7mm
|
|
Working speed:
|
12-15m/min
|
|
Roll station:
|
23 stations
|
|
Hydraulic station power:
|
4kw
|
|
Hydraulic pressure:
|
10-12Mpa
|
|
Main motor power:
|
5.5kw
|
|
Controlling system:
|
PLC
|
|
Total weight:
|
about 10,000kg
|
|
Size
|
10500×1500×1200mm
|
■ Metal Roof and Wall Cladding Corrugated Sheets Applications
If compared the traditional technology, the trapezoidal roofing and siding panel by roll forming machine can be more durable and cost effective.
The special designed ribs on the roof panel can increase the intensity too much, and obtain the lower weight ratio, with the advantage, this trapezoidal sheet products are widely adopted by commercial and industrial applications, for factories, shop lots and apartments, etc.
Besides being used as metal roofs, Rib is equally suitable for use as cladding and fascia or even hoarding. The available materials are including colored steel, GI steel coil, aluminum, or the other metal suitable for cold forming technology.

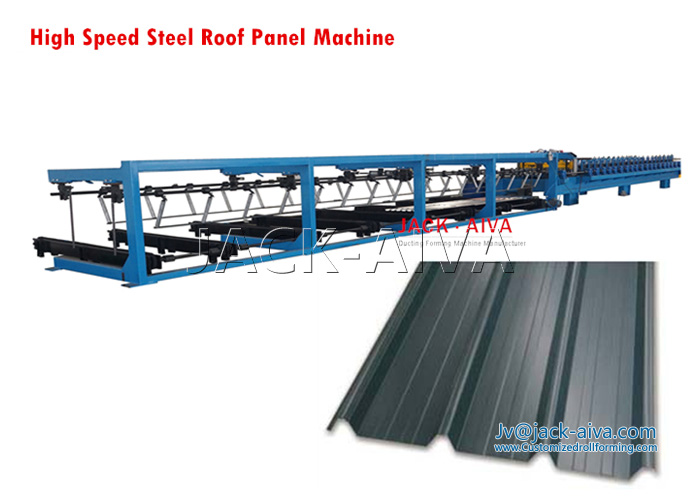

Customized roll forming machine for production roof and wall panels can be supplied according to client request, only client need to supply us the sectional profile drawing with sizes, or actual roof panel sample. The following is some corrugated panel roofs profiles for your reference.
For information on metal roof sheets profiles by our roll-forming mills, please contact with us!
TAG: Trapezoidal Panel Roll Forming Machine, Roofing panel machine, siding Panel machine, metal roof panel machine, wall panel machine
