K style Gutter Machine

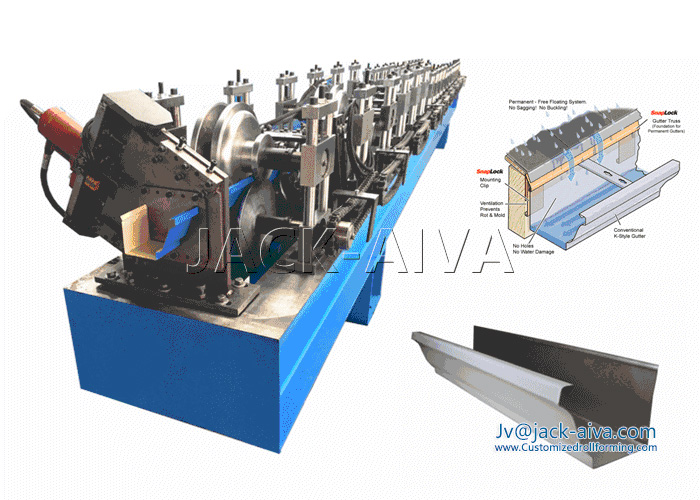

■ Roll Forming machine for Production of Roof Rain K style gutter
K style gutter is an typical rain gutter for conveying rain water from a roof or gutter to the ground. Our roll forming Machine of gutter machines can run copper, steel, or aluminum for production various sizes half round gutters for roofing rain system, Mostly it is adopted for resident building or commercial building. Now The gutter system is more and more widely applied in rain water storage solution. Our mission is to provide excellent custom gutter machines and tools for professional gutter installation and quality product at competitive prices.

■ K style Gutter Roll Forming Machines Components

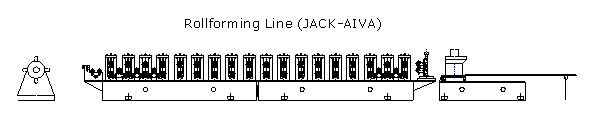

K style Gutters Roll Forming is consisted of de-coiler, material feeding device, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.

■ K style Gutter forming machine parameters specification

Line structure	Portal-type frame style, HT200 steel
Forming Roller Stations:	14 Stations
Forming Roller shaft:	φ60mm
Forming rollers	GCr15, Quenching, hardness HRC56-62º
Forming Speed:	12 meters / min
Main motor:	7.5kw,
Capacity Length:	up to 9999 mm (optional)
Material of Sheet:	Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:	0.4 to 0.6 mm
Cutting mode:	Tracing cutting system with round saw or hydraulic cutter is optional.
Total Gross Weight:	About 6000kgs
Line size (Lx w x h)	6000 mm×1000 mm×1100 mm

■ K style gutter Applications

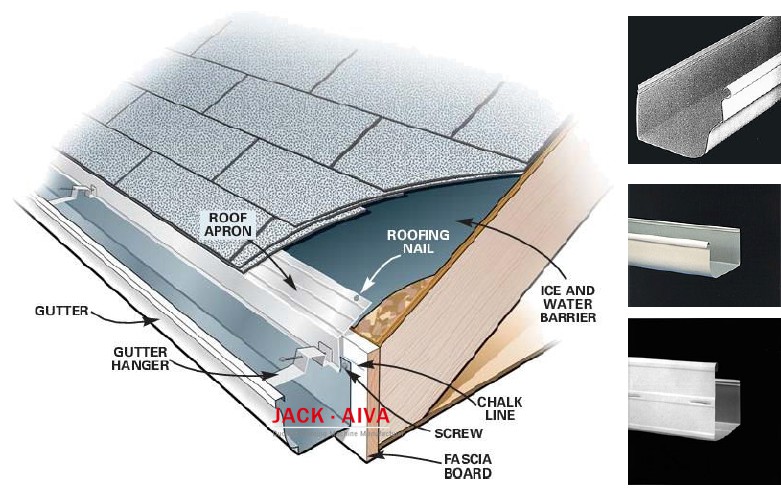

The K style rain Gutters can be used for roof edges, draw water down and away from the house and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts. Gutters can be constructed out of aluminum, copper, galvalume, galvanized steel, copper penny aluminum, freedom gray copper, designer copper aluminum, lead coated copper, paint grip steel.
We design innovative range of gutter machines for the production of half round gutters with traditional profiles and width 280, 333 and 400 mm.

Please contact with us for the further details! Custom style gutter profiles are welcome!
