Round Downspout Machine
■ Roll Forming machine for Production of Roof Drainpipe System
Downspout is a round rain pipe for conveying rain water from a roof or gutter to the ground. Our roll forming Machine of round downspout machines can run copper, steel, or aluminum for production various sizes round pipes.
This downspout roll forming machine is special for manufacturing various size Round downspout for roofing rain system, this pipe is also named as rainspout, round downspout pipe. It is used for resident building or commercial building. Downspout is a pipe for conveying rain water from a roof or gutter to the ground or to a drain, also referred to as Leader pipe, Down-pipe or Drains-pout. The downspouts are more and more widely applied in rain water storage solution.
Totally there have two machines for this rain downpipe production solution, the roll forming machine for production straight rain downpipe, and another machine named Downspout Crimpers for production rain pipe elbow.
■ Round downspout Machine Components

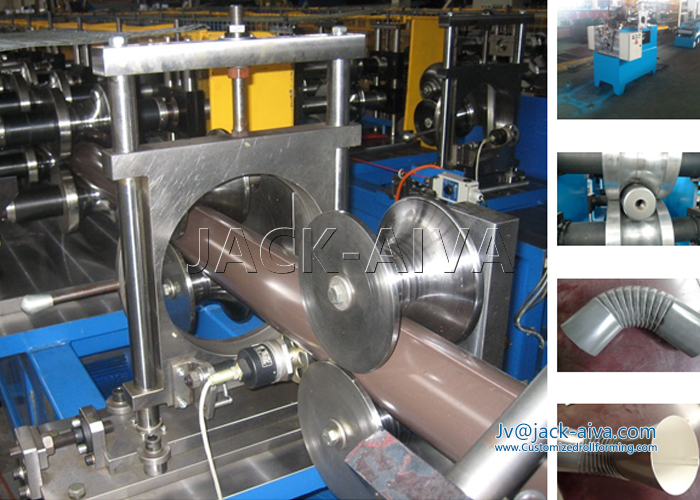

Round Downspout Roll Forming machine is consisted of de-coiler, material feeding device, main roll forming machine, tracing cutting device, run-out table, electrical control system.
■ Round Downspout Pipe Roll Forming Machine Main Parameters (Φ100)
|
Forming Roller Stations:
|
20 Stations
|
|
Forming Roller size:
|
36 mm (for soft quality sheet)
|
|
Forming Speed:
|
7-10 meters / min
|
|
Main motor:
|
5.5KW
|
|
Cutting motor::
|
2.2 KW ( 3XAC380v, 50HZ)
|
|
Roller material:
|
High quality 40Gr after treating
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.4 to 0.6 mm
|
|
Line structure:
|
Portal-type frame style, 45# steel
|
|
Cutting mode:
|
Tracing cutting system, round saw or better device are opitional.
|
|
Total Gross Weight:
|
About 5000kgs
|
|
Line size (Lx w x h)
|
6000 mm×1100 mm×1300 mm
|

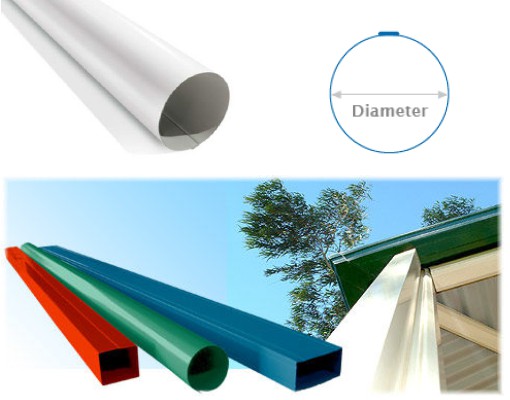

We can supply customer two style downspout pipe machines, inner locking and out locking style down pipe machine. Different size downspout from 50mm to 100mm, plain round downspout or corrugated round downspout is optional.
■ Round downspout Applications
The downspouts are more and more widely applied in rain water storage solution. Downspout disconnection (sometimes called roof leader disconnection) represents a cost-effective on-site alternative for reducing the volume and cost of stormwater that requires public management. Runoff from residential rooftops is collected by eaves troughs, which are installed along the edge of the roofline. Water collected in the eaves trough is conveyed to ground level by one or more downspouts. Downspouts may then connect directly into the storm sewer system into a combined storm and sanitary sewer system. Disconnecting downspouts brings a number of economic and environmental benefits to the municipality and the homeowner.
|
Material Specification and Sizes
|
|
Profile
|
BMT (mm)
|
Tensile (MPa)
|
Size (mm)
|
Roof Area Drained (m²)
|
|
|
0.40 and 0.50
|
G300
|
50
|
30
|
|
65
|
45
|
|
75
|
65
|
|
90
|
90
|
|
100
|
115
|
|
125
|
170
|
|
150
|
250
|
|
175*
|
345
|
|
200*
|
450
|
|
225*
|
570
|
