Drywall Track Roll forming Machine
■ Track of Drywall Partitioning System
The drywall partitioning system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.
In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.

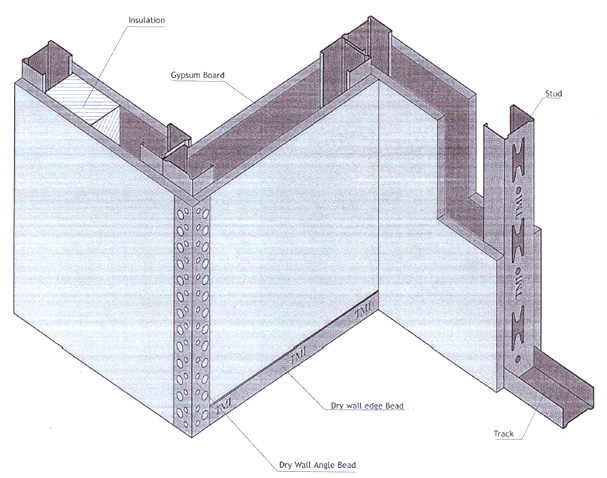

The drywall partition beam system are consisted of stud, track, drywall angle bead and drywall edge bead, etc.
■ Track Roll Forming Machine Components- Dry Wall Partition Beam

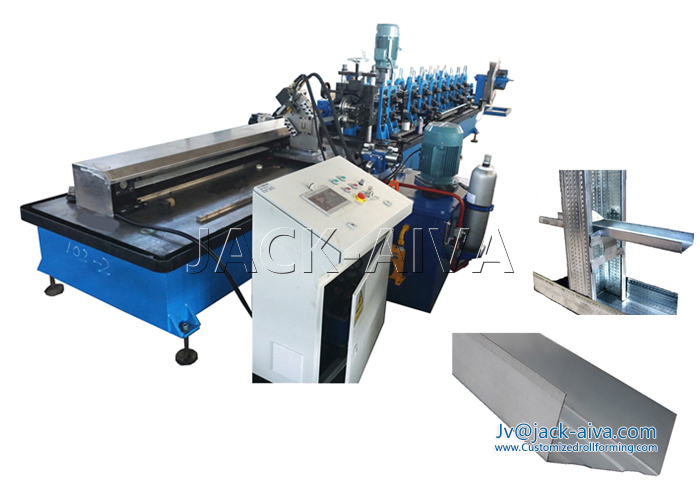

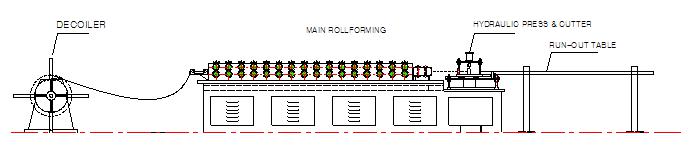

Our Drywall partition beam roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The Drywall stud Roll Forming Machine is consist of de-coiler, main forming machine, straightening part, cut-to length part, run-out table, electrical control system, etc.
■ Main Parameters- Drywall Track Roll Forming Machine
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
12 Stations
|
|
Forming Roller shaft:
|
Φ40mm
|
|
Forming rollers
|
SKII, Quenching, hardness HRC60-62º
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
5.5kw
|
|
Capacity Width:
|
200mm
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.4 to 0.7 mm
|
|
Cutting mode:
|
Hydraulic automatic punching and cutting machine
|
|
Control Cabinet
|
3xAC380v, 50HZ
|

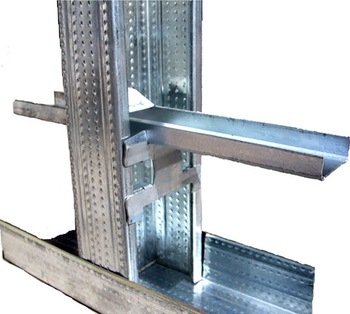

■ Drywall Partition Sections- Track
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames ( stud wall construction ) and also roof trusses. There are many kinds of profiles of the dry wall partition beam & stud partition as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.
The following are the typical drywall stud sizes list for your reference.
■ Roll forming machine for manufacturing the production profiles for Ceiling & dry Wall system
TAG: Track Roll forming Machine, Drywall Partitioning system, Drywall Track Machine
