Stainless steel embossing machine
We are specialized in manufacturing embossing roller, graining roll, gold blocking plate, light extinction roll, mirror roll, brand plate and forming mould with dermatoglyph pattern, reticulate pattern and wood-grain. The product is used in construction industry and embossing decorative material industry.
■ Double surface stainless steel Embossing machine technology specification
|
ITEM
|
CONTENT
|
|
Roll Formed Profile Type:
|
Embossed sheets pattern according clients’ request
|
|
Embossing roller diameter
|
About 300mm
|
|
Efficient width:
|
1250 mm (optional)
|
|
maximum thickness:
|
0.4mm-1.2 mm
|
|
Sheet Material
|
galvanized mild steel, stainless steel
|
|
Motor power:
|
5.5Kw, 3x380V
|
|
Diameter of rolling
|
cycloid reducer and chain
|
|
Speed of embossing
|
6m/min
|
|
Main machine Size:
|
1820×1220×1400)mm
|
|
Weight:
|
3500kg.
|

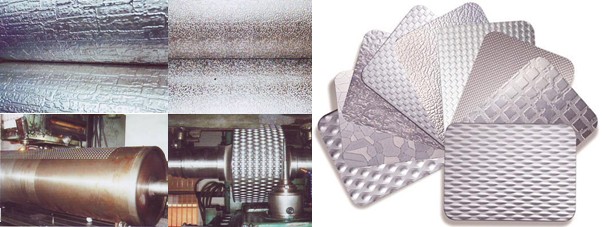

■ Stainless Steel Embossing Sheet Application
Embossing is a metal forming manufacturing process by means of male and female harden metal rollers (dies) to form raise or sunken patterns on sheet of metal. The stainless steel slipping-proof pattern board is mainly applied in various machineries, lifts, stairs, construction and decoration industry, the industries of windows, doors, furniture, offices, buildings, automobiles, cold roll formed steel bar, ventilation duct sheets and more.
Further information, pls contact with us freely!
