Stainless Steel Slip on Flange Roll Former
■ Stainless Steel Slip on Flange Roll Former for the Manufacture of Air-condition Rectangular Ducts Fittings

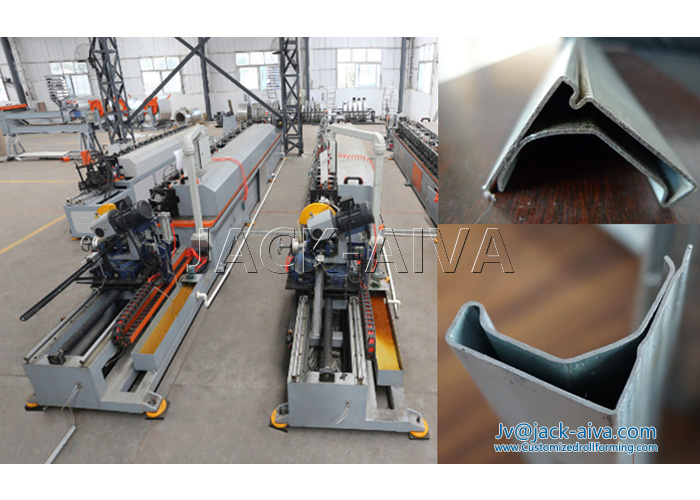

With the advantage of our roll forming technology design ability, we just developed the TDC flange Roll-former machine to manufacture HVAC Duct stainless steel flanges. The stainless steel TDC flange size also can be from 15mm to 50mm, or other flange size for medium and large producers of square HVAC duct. Our Roll-former is consisted of vertical de-coiler, main roll former, saw cutter and auto run out table. the tracing cutter by servo driving system can be optional. The whole roll forming line can also be with glue-water injection device for the sealing mastic directly during the forming process.
The TDC Flange is one of the two universal rectangular duct flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. The stainless steel TDC flanges can be used for stainless steel air duct system, Used in a specific place and Not easy to rust
Our manufacturer is the earliest supplier for this TDC flange roll forming machine, the leading manufacturer in china. We are the exclusive one in china to have the ability to supply the stainless steel flange making machines.
Custom TDC flange roll former can be designed according to clients’ requests.

■ Main Parameters - Stainless Steel Slip on Flange Roll Former Machine For Rectangular duct flange
Raw material: Stainless steel 304
Raw material width (mm): According to the client’s sample or drawings
Raw Material Thickness (mm): TDC flange 15mm, 20 mm profile: 0.6 - 0.8 mm
TDC flange 30mm, 35 mm profile: 0.8 -1.0 mm
TDC flange 40mm, 50mm profile: 1.0 - 1.2 mm
(Or can be according to client’s requirement)
Forming roller station quantity: About 22Stations
Motor power Main motor: 7.5kw, AC380v, 50HZ
Cutting motor: 1.75kw, 2xAC220v, 50HZ
Weight (KG): About 3000
Line Dimension (L*W*H)mm: 6850x700x1500

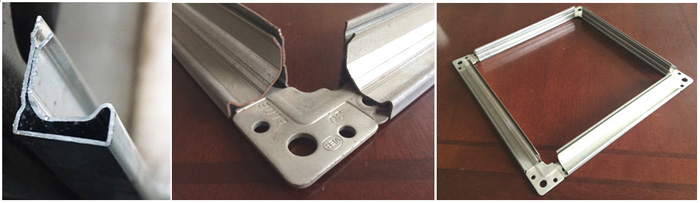

TDC flange profile: Stainless steel TDC flange

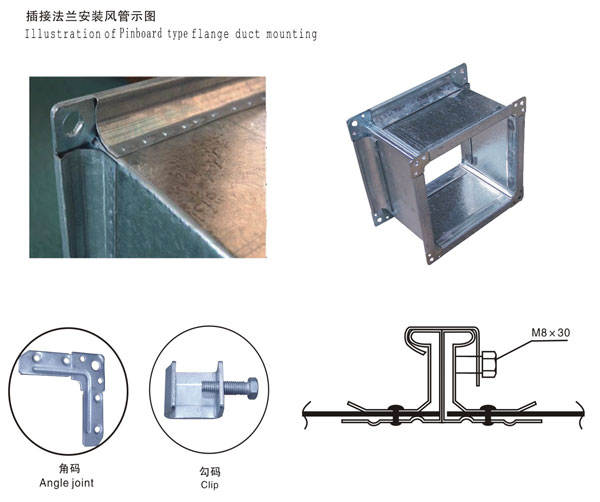

■ Stainless Steel Slip on Flange Roll Former Installation


■ Stainless Steel Slip on Flange Roll Former for the Manufacture of Air-condition Rectangular Ducts Fittings
With the advantage of our roll forming technology design ability, we just developed the TDC flange Roll-former machine to manufacture HVAC Duct stainless steel flanges. The stainless steel TDC flange size also can be from 15mm to 50mm, or other flange size for medium and large producers of square HVAC duct. Our Roll-former is consisted of vertical de-coiler, main roll former, saw cutter and auto run out table. the tracing cutter by servo driving system can be optional. The whole roll forming line can also be with glue-water injection device for the sealing mastic directly during the forming process.
The TDC Flange is one of the two universal rectangular duct flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. The stainless steel TDC flanges can be used for stainless steel air duct system, Used in a specific place and Not easy to rust
Our manufacturer is the earliest supplier for this TDC flange roll forming machine, the leading manufacturer in china. We are the exclusive one in china to have the ability to supply the stainless steel flange making machines.
Custom TDC flange roll former can be designed according to clients’ requests.

■ Main Parameters - Stainless Steel Slip on Flange Roll Former Machine For Rectangular duct flange
Raw material: Stainless steel 304
Raw material width (mm): According to the client’s sample or drawings
Raw Material Thickness (mm): TDC flange 15mm, 20 mm profile: 0.6 - 0.8 mm
TDC flange 30mm, 35 mm profile: 0.8 -1.0 mm
TDC flange 40mm, 50mm profile: 1.0 - 1.2 mm
(Or can be according to client’s requirement)
Forming roller station quantity: About 22Stations
Motor power Main motor: 7.5kw, AC380v, 50HZ
Cutting motor: 1.75kw, 2xAC220v, 50HZ
Weight (KG): About 3000
Line Dimension (L*W*H)mm: 6850x700x1500
TDC flange profile: Stainless steel TDC flangeStainless Steel Slip on Flange Roll Former Installation
