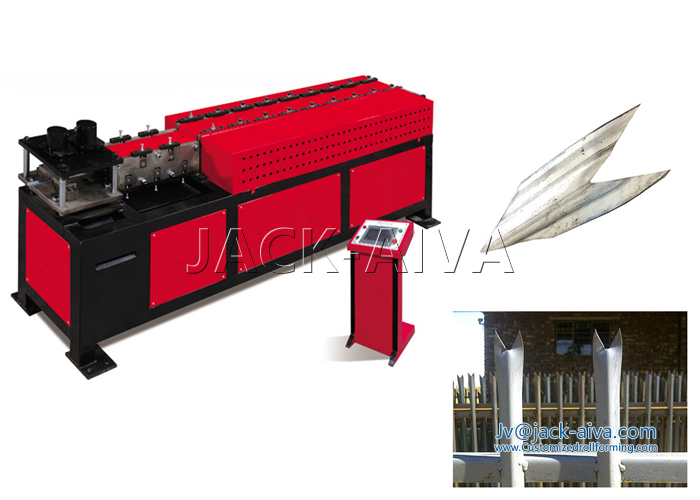

C Shaped Fence Post Roll Forming Machine
■ Roll Forming Machine for production c Steel Barrier fence Post
The fence post range by our roll forming machine includes road safety barriers, motorcycle barriers, end terminals, car park and warehouse barriers, factory barriers, etc.
The C profile Palisade Profile as a main part of the fence is a product made by rolling cold-galvanized steel strip. This steel pillar is mainly used in barbed wire fences. The horizontal cross-sectional shape of the mounting pillar can be divided into I-shaped pillars, C-shaped pillars, L-shaped post, mouth-shaped pillars, and Y-shaped post. there already have mounting holes on the posts.
The surface of the pillar can be treated with galvanizing or plastic spraying. The characteristics of this fence are beautiful, durable, easy to install and easy to disassemble. It can be made into a permanent fence, and it can also be used as a temporary isolation fence. This is an ideal metal fence, which has been widely used in various industries.
■ Technology Specifications- C shaped Steel Barrier fence Post Roll forming machine
With our more than 20 years in this roll forming machinery industry, we have full experience to supply the customized barrier fence roll formers according client request, H shaped post, L shaped post, Y shaped post, pipe post, etc.
This roll forming line mainly consists of conic, guide equipment, leveling system, edge cutting, punching, roll forming system, roll forming cutting system, stacking equipment, stacking move equipment, hydraulic station, electric control cabinet.
The technology is as following,

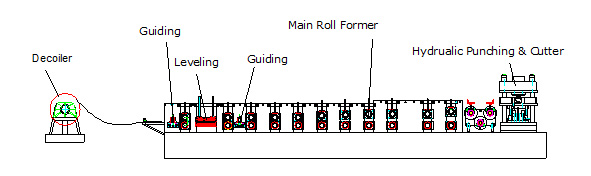

De-coiler (3 tons) - Roll Forming - Hydraulic Punching Holes + Post Cutting - Unloading Table (Without power)
■ Main Parameters- C shaped Steel Barrier fence Post Roll Forming Machine
|
Roll Formed Profile Type
|
C Palisade Profile
|
|
Raw material thickness
|
According to 1.0mm, DC51D
|
|
Raw material width
|
According to the confirmed profile drawing
|
|
Line structure
|
Portal-type frame style: 45# steel
|
|
Forming Roller Stations:
|
Around 7 Stations
|
|
Forming Roller shaft:
|
¢65mm, 45#, treating
|
|
Forming rollers
|
GCR15 & 45# steel, quenching, hardness HRC56-60º, chrome plated
|
|
Forming Speed:
|
Main roll forming machine speed is designed according to 0-12m/min
|
|
Main motor:
|
7.5kw
|
|
feed material thickness:
|
2.0-3.0mm× L
|
|
Suitable raw material:
|
Q235A / galvanized steel sheet
|
|
Driving mode:
|
By gearing box
|
|
Power supply
|
380V / 50Hz / 3 Phases
|

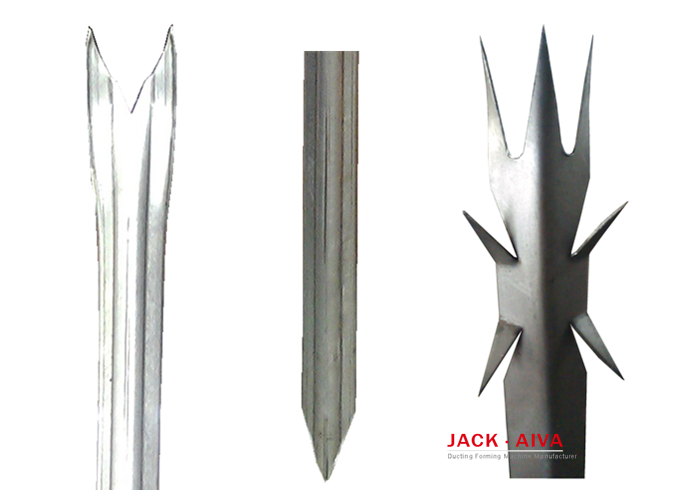

C shaped Steel fence Post Profile

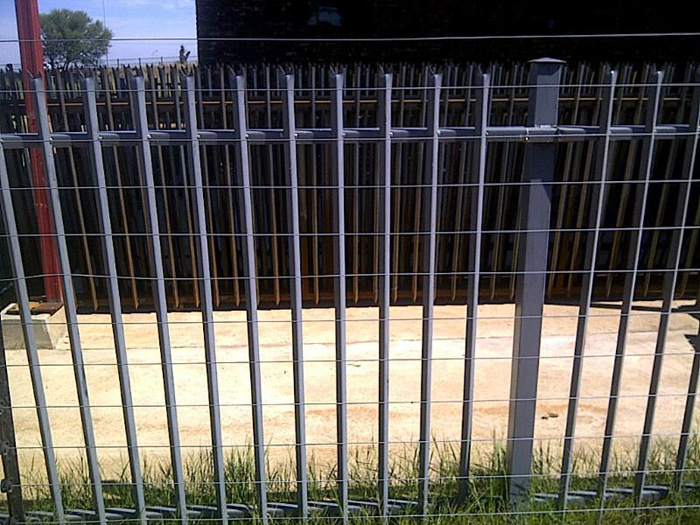

■ C shaped Steel fence Post Applications
The advantage of the steel wire fence with this cross post is Extraordinary and fashionable design, convenient installation. The fence net are jointed with the post without any clamps, and it is easy and convenient. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.
With these advantages, this style wire net fence are widely adopted by following fields,
Road and transit (highway, railway, road, city transit)
Science & Industry Zone (factory, industry zone, sightseeing zone, new pattern farm)
Private grounds (courtyard, villadom )
Public grounds (park, zoo, train or bus station, lawn)
Commercial grounds (corporation, hotel, supermarket)
The following the cross shaped post profile is for reference. The custom fence post profile is welcome!
TAG: Steel Fence Post Machine, Barrier Post, c shaped Fence Post, Palisade Profile Roll Forming Machine
