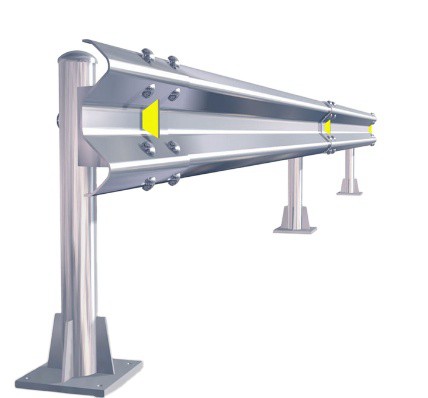

■ Brief introduction- Expressway W-Beam Guardrails & Roadside Barriers
W-beam guardrails are cost-effective longitudinal highway barriers as Protect Rail designed to reduce the severity of run-off-road collisions, prevent vehicular impact with roadside objects, and lessen the likelihood of vehicle overturning.
the roll-formed galvanized guardrails feature the latest advancements in highway safety barrier technology to ensure maximum strength and long-term durability of our products. Galvanized guardrails are coated with a uniform layer of zinc coating to prevent discoloration and weak spots caused by rust and corrosion.
W-beam highway guardrails are the most common crash barrier used on highways due to their high effectiveness and inexpensive production costs.

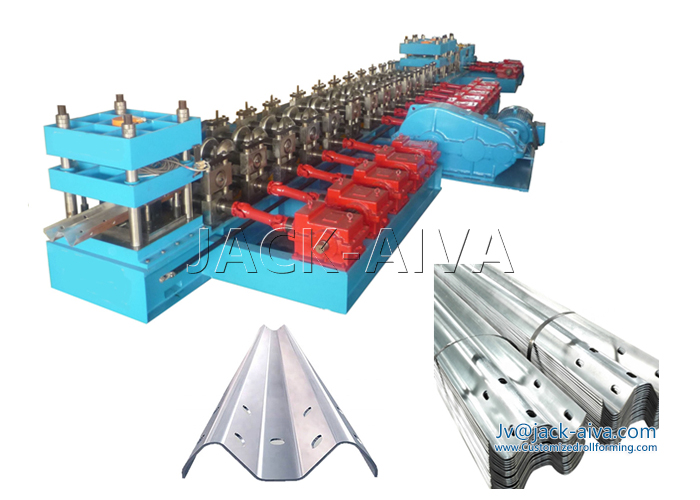

■ Expressway W-Beam guardrail Roll Forming Machine
Expressway Guard Rail Forming Machine is an expert machine specialized in Roadside Barriers. The products of the machine are widely used in the highway and the relate fields.
This Roll Forming Line is for the manufacture of W-beam Expressway Guardrail, Galvanized W beam guardrails, Corrugated steel beam, fencing and road barrier, B Guardrail, Three beam steel guardrail, Highway Barrier Beams, Standard W-beam Guardrail, Steel Beam Guardrail,

■ Technology flow - Expressway W-Beam guardrail Roll Forming Machine
This guard rail forming machine mainly consists of conic, guide equipment, leveling system, edge cutting, punching, roll forming system, roll forming cutting system, stacking equipment, stacking move equipment, hydraulic station, electric control cabinet.
De-coiler - Coil strip leveling- Punching-I for horizontal hole)-Punching-II (for vertical hole)-Roll forming- straightening device---Cut to length- Product packaging (manual)

■ Main Parameters- Expressway W-Beam guardrail Roll Forming Machine
- Line structure Portal-type frame style: 45# steel
- Forming Roller Stations: 18 Stations
- Forming Roller shaft: ¢90mm, 40Cr, quenching, treating
- Forming rollers GCr15, quenching, hardness HRC56-62º
- Forming Speed: 12 meters / min (suggestion speed: 7-8m/min)
- Main motor: 45kw
- Hydraulic station motor 15kw
- feed material thickness: (2-5) mm× L
- Suitable raw material: Q235A galvanized steel sheet
- Driving mode: Gearing box & cardan shaft
- Cutting mode: automatic punching cutting style
- Blade material: Cr12, quenching and treating
- Control mode PLC

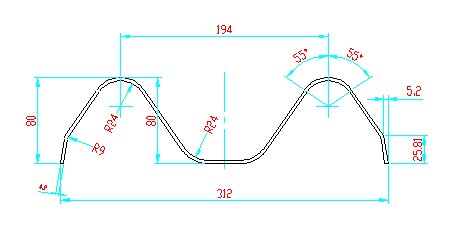

■ Expressway guardrail profile
Roll formed guardrail profiles produced by roll form machine are included W beam guardrail and three beam steel guardrail. The following profiles showed as following is for the two waves and three waves and post profile drawing and popular in the world market,

We specialize in roll former machines engineered to produce expressway 2 – space W beam guardrails, Guardrail sigma posts, corrugated steel beam, Sign posts, highway Barriers, steel guardrail cross beam, Guardrail End, etc. .
The custom express high way guardrail profile is welcome!
