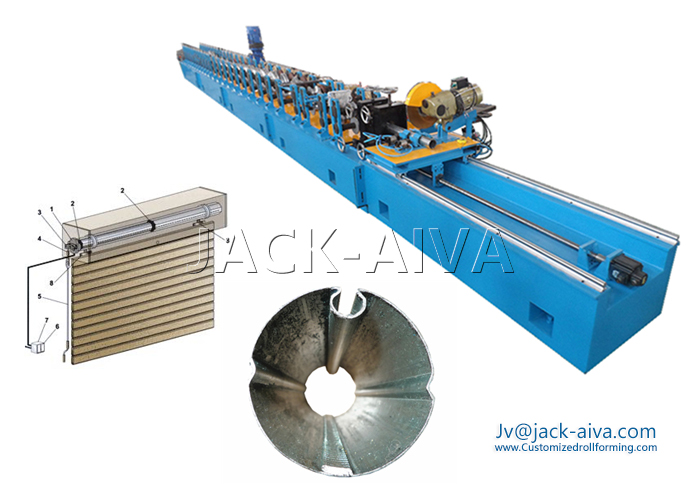

Rolling shutter Door Pipe Machine
■ Roll Forming machine for manufacturing round Tube of Rolling Shutter Windows and Doors system
The rolling Pipe is for winding up the rolling shutter, made in various shapes. Our mission is to provide excellent custom octagonal rolling tube roll forming machines and tools for professional rolling shutter door and windows installation and quality product at competitive prices, such as Octagonal and round pipe forming machines for Residential tube Machines and Commercial tube Machines.
■ Rolling shutter Round tube Roll Forming Machine Components

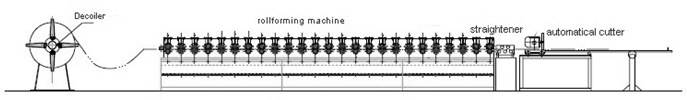

Rolling shutter Pipe Roll Forming machine is consisted of de-coiler, material feeding flatting device, punching system, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.
■ Rolling shutter Pipe Roll Forming Machines Main Parameters
|
Line structure
|
Portal-type frame style, HT200 steel
|
|
Forming Roller Stations:
|
24 Stations
|
|
Forming Roller shaft:
|
Φ42
|
|
Forming rollers
|
CR12MOV, Quenching, hardness HRC60-62º
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
7.5kw,
|
|
Capacity Length:
|
up to 9999 mm (optional)
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
1.0 to 1.2 mm
|
|
Cutting mode:
|
Tracing cutting system with round saw
|
|
Total Gross Weight:
|
About 6000kgs
|
|
Line size (Lx w x h)
|
11000 mm×1000 mm×1100 mm
|

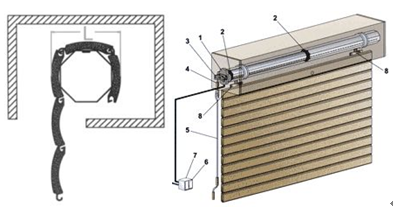

■ Roller shutter round pipe for door and windows applications
Rolling shutter door & windows Round pipe
Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.
TAG: Tube Forming Machine; Forming Machine, rolling shutter tube, Roller shutter pipe, Rolling shutter tube Forming Machine, Rolling shutter pipe Forming Machine
