Rolling Shutter Guide Track Machine


 Roll Forming machine for production track of Galvanised steel Rolling Shutter door Side Guide
Our rolling shutter Channel guide Side Guide is custom built for each application with many options for your exact needs. It is the track for rolling shutter slate side guide, can be custom designed met client’s needs. Our Roll Forming machine IS for production track of Rolling Shutter door Side Guide, Side guide, roller shutter sliding, rolling shutter track,

 Technology Specifications- Rolling Shutter door Side Guide roll forming machine

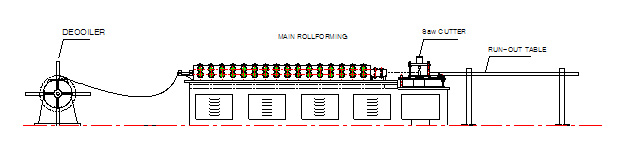

Rolling Shutter side guide Roll Forming Machine is consist of It is consist of de-coiler, main forming machine, straightening part, cut-to length part (Saw cutter), run-out table, electrical control system, etc.




 Main Parameters- Roll forming Machine for rolling shutter slats
Raw material Thickness: 1.2mm, GI steel material,
Material of Sheet: Σs≤260Mpa
Roll forming stands: 25 sets
Forming Roller shaft: Φ36mm
Roller material: Cr12Mov
Rolls hardness after treatment: 58º-60º
Motor power: 7.5KW
Forming speed: 5-8m/min (adjustable, VFD Control)
Cutting mode: Automatic control cut-to-length
Electrical control system 3XAC380V, 50HZ.

 Roll-up blinds production brief introduction (non-insulated single layer)
Many roll shutter doors of different specifications can be produced by our machine. And it can also produce doors according to customers’ special needs. Custom guide channel profile is welcome! Further details about this roll forming machine for production side guide, Pls contact with us.
Rolling shutters door now have been extremely popular not only in Europe, but in the whole world. In many European countries, such as Germany, Italy, France and Spain, roll shutters are a standard feature on homes and businesses. The roll shutter business has grown to become a multi-billion dollar industry. Rolling Steel Doors, Fire Doors, rolling shutter, rolling grille, coiling doors, direct manufacturer, Using quality materials, design and workmanship, Alpine complies with the highest security in rolling fire doors, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. Alpines, rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles, are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers. Also designed for warehouses, Dock Doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms. Alpine is a Direct Manufacturer of, Roll up doors, Rolling Fire shutters, Hurricane Roll Up doors, Smoke rated doors, Coiling steel doors, Rollup doors, Rolldown doors, Overhead rolling doors, Rolling steel Insulated doors, Offshore Rolling Doors and Offshore Fire doors, Rolling Sound Doors, Smoke Rated Doors, Fire and Rolling Hurricane doors.



TAG: Galvanised steel rolling shutter door profiles, Rolling shutter machine, Roller door Machine, Roll Forming machine for production track of Rolling Shutter door Side Guide, Side guide, roller shutter sliding, rolling shutter track,
