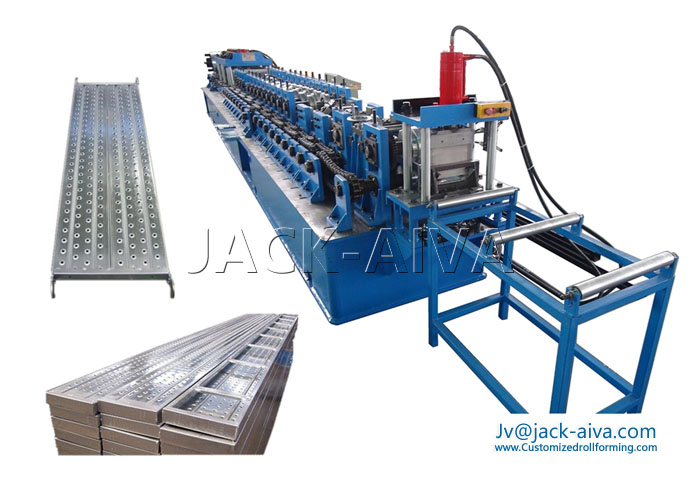

Scaffolding pedal Roll Forming Machine
■ Technology Specification - Roll forming machine for production Galvanized Steel Scaffolding pedal
With roll forming technology advantages, Galvanized Steel Scaffolding pedal profile sections have a much wider scope of cross section if compared with press braked sections and without length limitation. Roll Forming Production speed is much faster than with press brakes, and without secondary operations. The Galvanized steel scaffolding pedal roll forming machine consist of de-coiler, material Feeding device, punching machine, tensioning control device, roll forming machine, straightening device, automatic cutter, run-out table, electrical control system, etc.

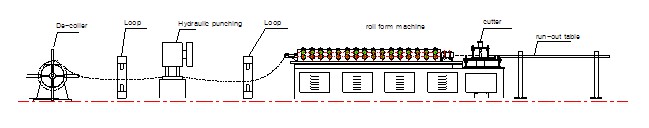

Layout of whole Scaffolding Roll Forming Machine
■ Main Parameters- Scaffolding roll forming machine
|
Roll Formed Profile Type:
|
Galvanized Steel Scaffolding pedal
|
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
15 Stations
|
|
Forming Roller shaft:
|
Φ70mm
|
|
Forming rollers
|
GCr15, quenching, hardness HRC56-58º
|
|
Forming Speed:
|
0 -10 meters / min
|
|
Main motor:
|
30kw,
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
1.5mm-2.0mm
|
|
Cutter Device
|
Hydraulic press or saw style is optional
|

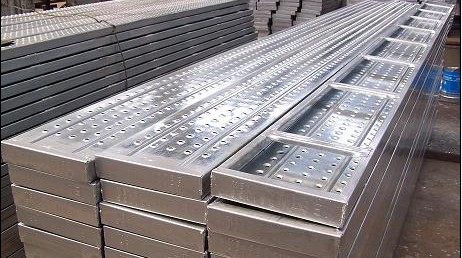

■ Galvanized Steel Scaffolding pedal Application
The main function of the steel plank is providing the studios for the workers. All the plank was made of steel concerned with the safety. There are ante-sliding hole and drainage hole on it. Hot galvanized is necessary to make the plank anti-jamming and anti-oxidation. The is kind new scaffolding is widely applied in construction industry now, even many countries have established relevant rules no permit the old style scaffolding just for worker safety. We invite inquiry for any of your custom metal track information, let us know your requirements, we will find the best solutions to meet your project.
TAG: Scaffolding Roll Former Machine, Scaffolding Pedal Board, Steel Scaffolding Plank Roll Forming Machine.
