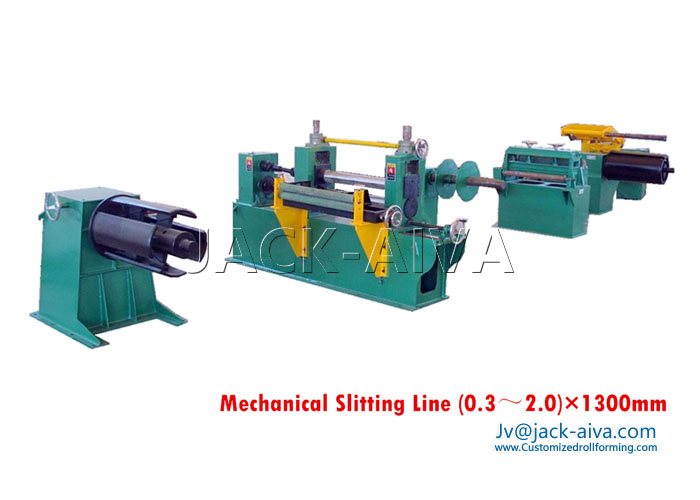

Mechanical Slitting Line General Introduction
This is the Mechanical control Slitting line machine, it is the proper solution for the client that their production quantity is not too many. It can do uncoiling, slitting and recoiling works, make coil steel to any desired width coil steel. It mainly includes coil car, un-coiler, coil guide, slitting machine, scrap winder, tension unit, re-coiler and coil car, hydraulic system, Etc. It mainly used in cold or hot rolled, galvanized iron, PPGI, stainless steel, carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.

■ Technical information- slitting line
Material: HR, CRC, GI, PPGI, SS
Material weight: Max 8000kg
Material thickness: 0.3mm – 2.0 mm
Material width: max 1300mm
Material inner diameter: 460mm~520mm
Material outside diameter: 1200mm
No.of Slitts 2~ 30 Nos
Slitting speed: 0-60m/min
Width tolerance: +/-0.15 mm
Set up Position: according client’s request.
Total power: about 37KW.

■ Slitter Machine parts in the working line

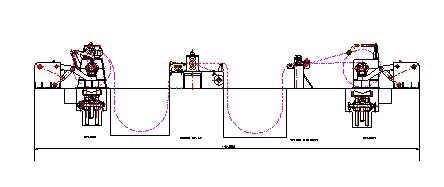

This whole line is consisted of hydraulic de-coiler with its Coil loading car (capacity 8000kg), slitting machine with scrap re-coiler and center line adjusting part, strip tension manual controller, hydraulic re-coiler with coil loading car (8 tons), electrical control system, hydraulic control system, etc.
Coil-loading---de-coiler----Disk slitting (strip aligning with Scrap re-coiler)---Tension controller---Recoiling---Coils-discharging

This line can be adjusted to do recoiling or dividing work to meet customer’s demand.
