Automotive Bumper Roll Forming Machine
■ Roll forming machine for Bumper/ frame part Brief Introduction
The field of automotive cold-formed molding equipment are mainly including as following, auto bumper or frame part profile equipment, windows guides, door trim, A-pillars, B-pillars, other automotive parts, rail car doors and windows, car beam shaping devices, and related auxiliary equipment auxiliary group and the three-dimensional pulled equipment, special cutting equipment.
■ Bumper/ frame part roll forming machine Technology Specification

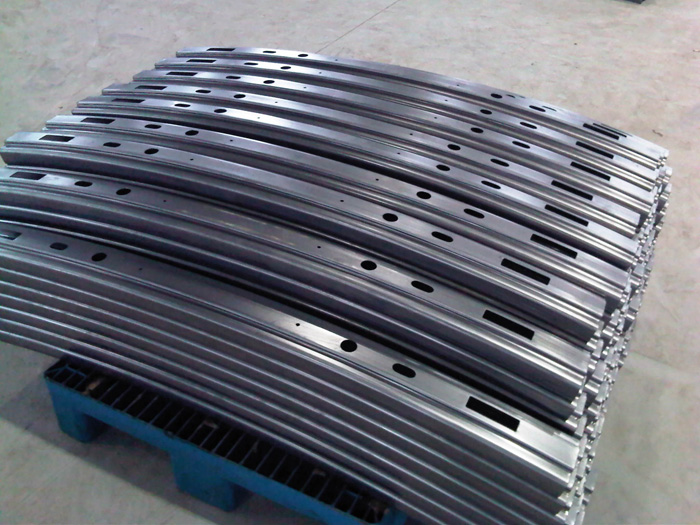

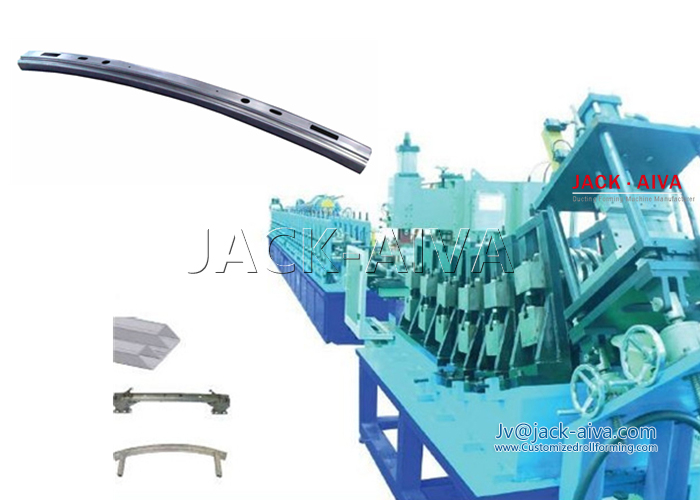

This is the custom roll forming line for manufacturing automotive bumper or frame part, considering the various automotive door and windows frames, it adopts cassette style roll forming unit technology, the whole line is consisted of de-coiler, roll forming machine, straightening device (including the straightening and bending parts), Stretch Bending machine, cutting device, electrical system.
■ Bumper frame part roll forming machine technology specification
1. Voltage: 3xAC380V; motor power (with high-speed fan) 22KW * 1; Converter 22KW * 1
2. Center height of around 1000mm, can be mounted on 24 set forming rollers; MAX speed 20r/min; Line speed: 0-16 m / min.
3. Line Dimension: 7000 * 1000 * 1500 (According to design date), and with Lubrication cooling system.
4. Axis effective width: 300mm; shaft diameter φ40mm; Maximum torque 139.6kg-m; adjacent shaft distance: 300mm; output torque 100kg-m.
5. Up and down roller axis parallel degree 0.08mm (any direction). Wheel installed base straightness 0.04mm, wheel axle hop is 0.04mm, wheel frame Table Flatness 0.10mm, roller shelves adjustable 95-170mm wheel under the frame Fast change mode device.
6. Forming Range: feeding material width 0-280mm, thickness 0-2.5mm.
7. Forming cross-section size precision ± 0.2mm.
Herein the related parameters are the standard, the custom lines are according to clients’ request.
We are one of the most professional suppliers in this automotive components roll forming machinery industry in china.
We had ever designed and supplied related automotive roll forming machines for the Toyota Corp., Honda Co., Chery and other relative spare parts suppliers and other related Chinese agriculture automobile companies, etc.
Custom roll formed profiles in this automobile industry are welcome!
TAG: Automotive Roll Forming, Automobile Roll Forming machine, Automotive Roll Forming Line, automotive beam roll forming line, Bumper (Frame part) Production Line
